Single Layer HDPE LDPE Dual Purpose Film Blowing Machine

Ruian Hoin Machinery Co., Ltd.
  • After-sales Service：Online Technical Support
  • Warranty：One Year
  • Type：PE Film Blowing Machine
  • Raw Material：PE
  • Maximum Folding Width of Film：3000mm
  • Screw Diameter：50-120mm

Base Info

  • Model NO.：FB-B
  • Automation：Semi
  • Computerized：Semi
  • Machine Weight：3-12t
  • Certification：CE, ISO9001:2008
  • Winder：Single
  • Die Head：Usual Type
  • Optional Part：Digital Corona Treater
  • Transport Package：Strech Film Packaged, Wooden Box
  • Specification：10*4.6*11m
  • Trademark：HOIN
  • Origin：Ruian, Zhejiang, China
  • HS Code：84773010
  • Production Capacity：300sets,Year

Description

MODLEFB-B-600F2B-B-800FB-B-1000FB-B-1200Suitable materialLDPE  LLDPE  HDPELayfat width of film(mm)60080010001200Thickness of film(mm)0.008-0.10Max.extrusion output40kg/h50kg/h60kg/h70kg/hScrew dia(mm)Φ50Φ55Φ60Φ65Screw L/D28:1Screw rotation10-100r/minMain motor(kw)111518.522Dia of orifice(mm)Φ80/Φ120Φ80/Φ160Φ120/Φ220Φ130/Φ250Tota power(kw)18242840Weight (T)33.64.25Dimension LxWxH(M)4.2x2x3.84.6x2.2x45x2.4x4.55x2.6x4.8     MODLEFB-B-1500FB-B-2000FB-B-2500FB-B-3000Suitable materialLDPE  LLDPE   HDPELayfat width of film(mm)1500200025003000Thickness of film(mm)0.01-0.100.02-0.100.02-0.100.02-0.10Max.extrusion output85kg/h140kg/h180kg/h220kg/hScrew dia(mm)Φ75Φ100Φ110Φ120Screw L/D28:1Screw rotation10-100r/minMain motor(kw)30557590Dia of orifice(mm)Φ200/Φ350Φ500Φ600Φ750Total power(kw)5284110130Weight (T)67.69.812Dimension LxWxH(M)6x2.9x6.28x3.5x89x4.2x9.610x4.6x11Machine Pictures for Reference:

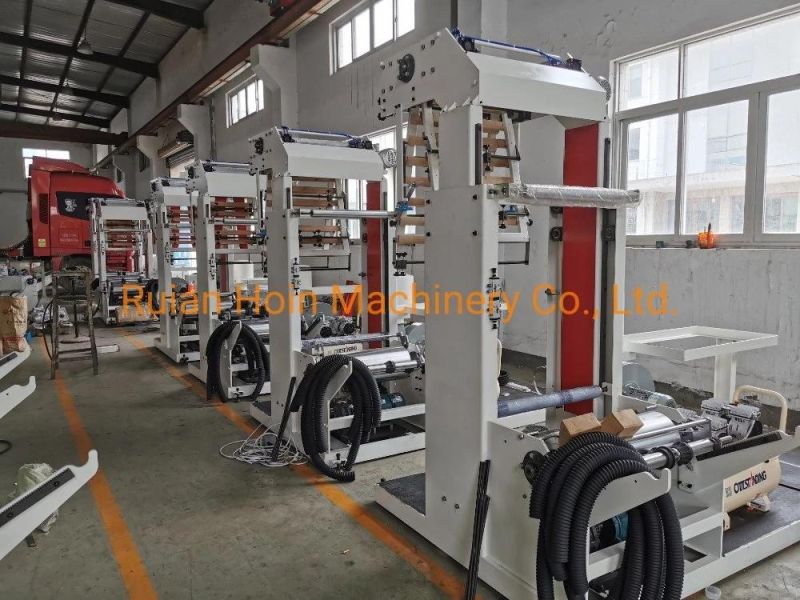

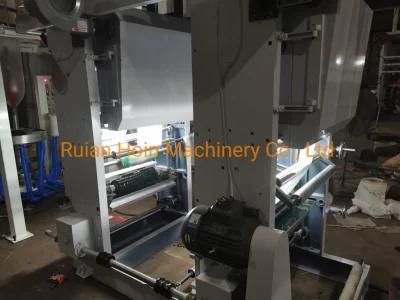

Single Layer HDPE LDPE Dual Purpose Film Blowing MachineSingle Layer HDPE LDPE Dual Purpose Film Blowing Machine

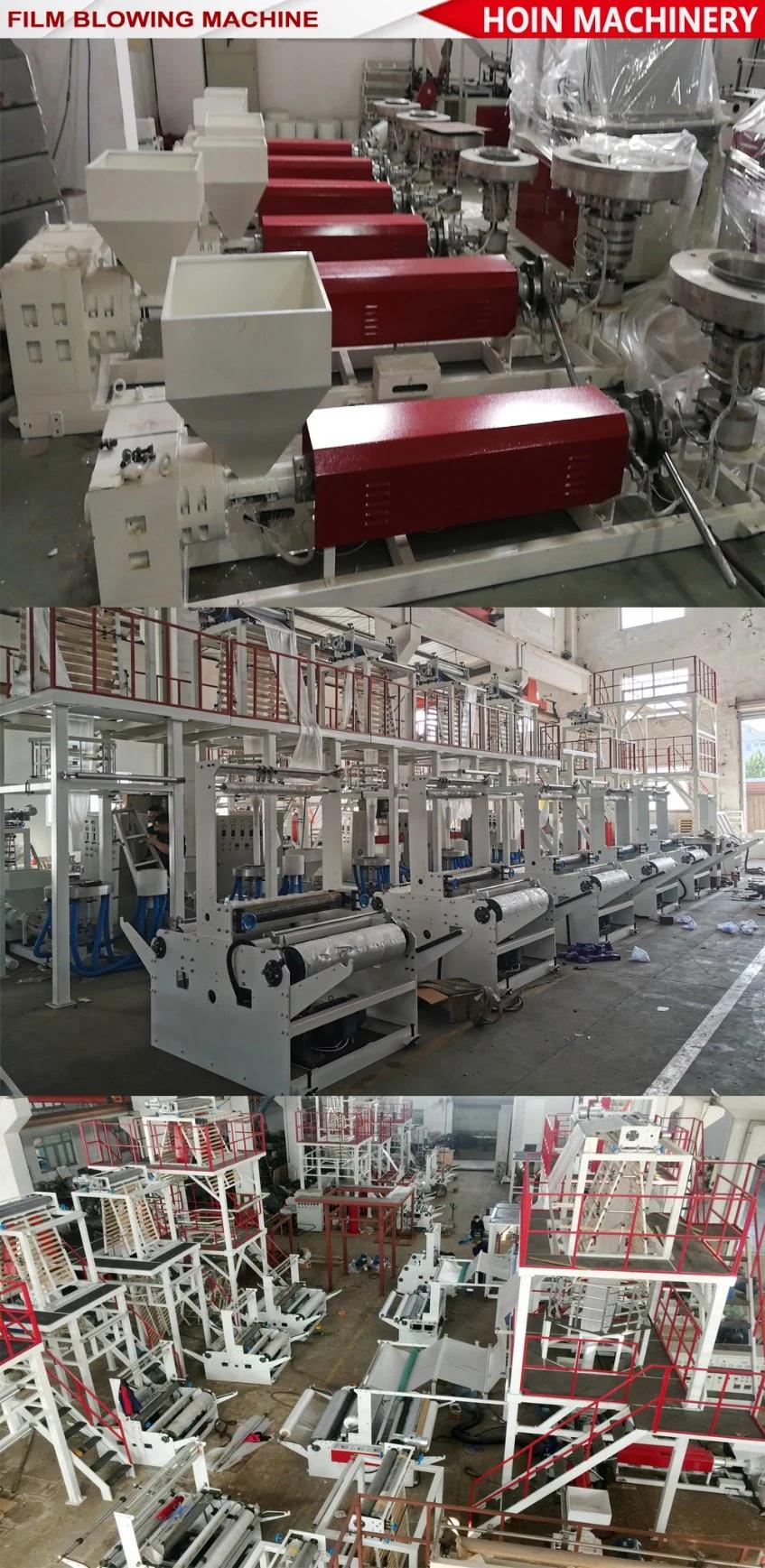

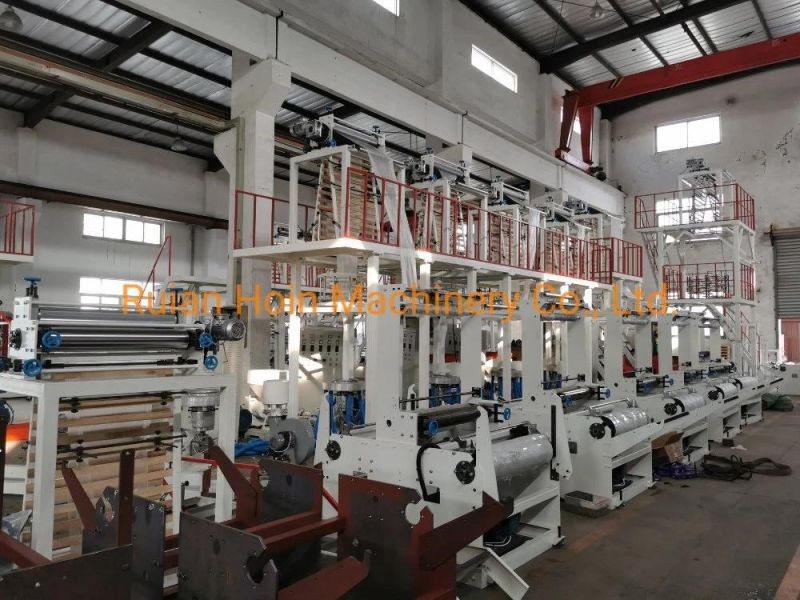

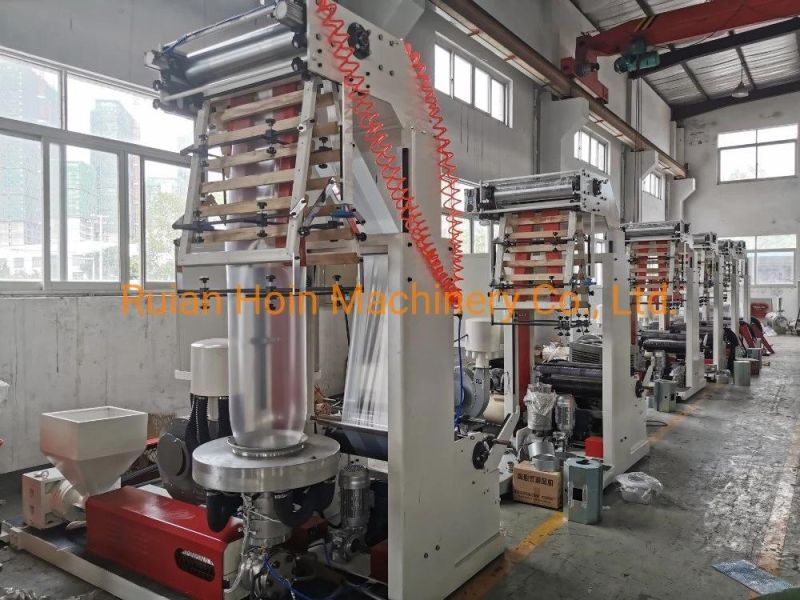

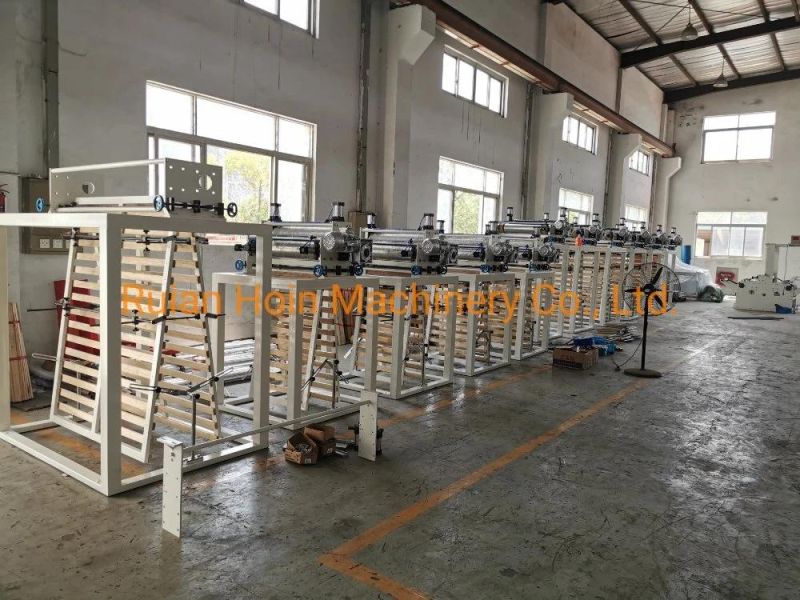

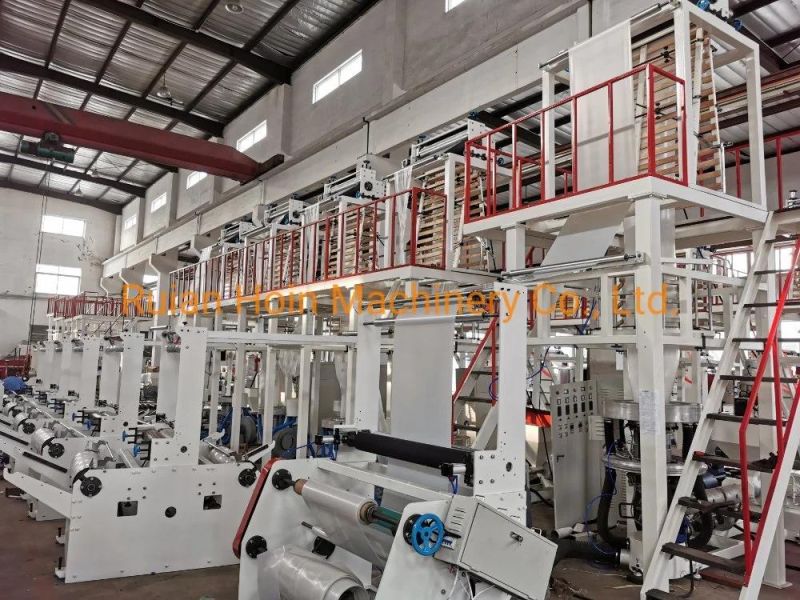

Single Layer HDPE LDPE Dual Purpose Film Blowing MachineSingle Layer HDPE LDPE Dual Purpose Film Blowing MachineSingle Layer HDPE LDPE Dual Purpose Film Blowing MachineSingle Layer HDPE LDPE Dual Purpose Film Blowing MachineWorkshop of HOIN

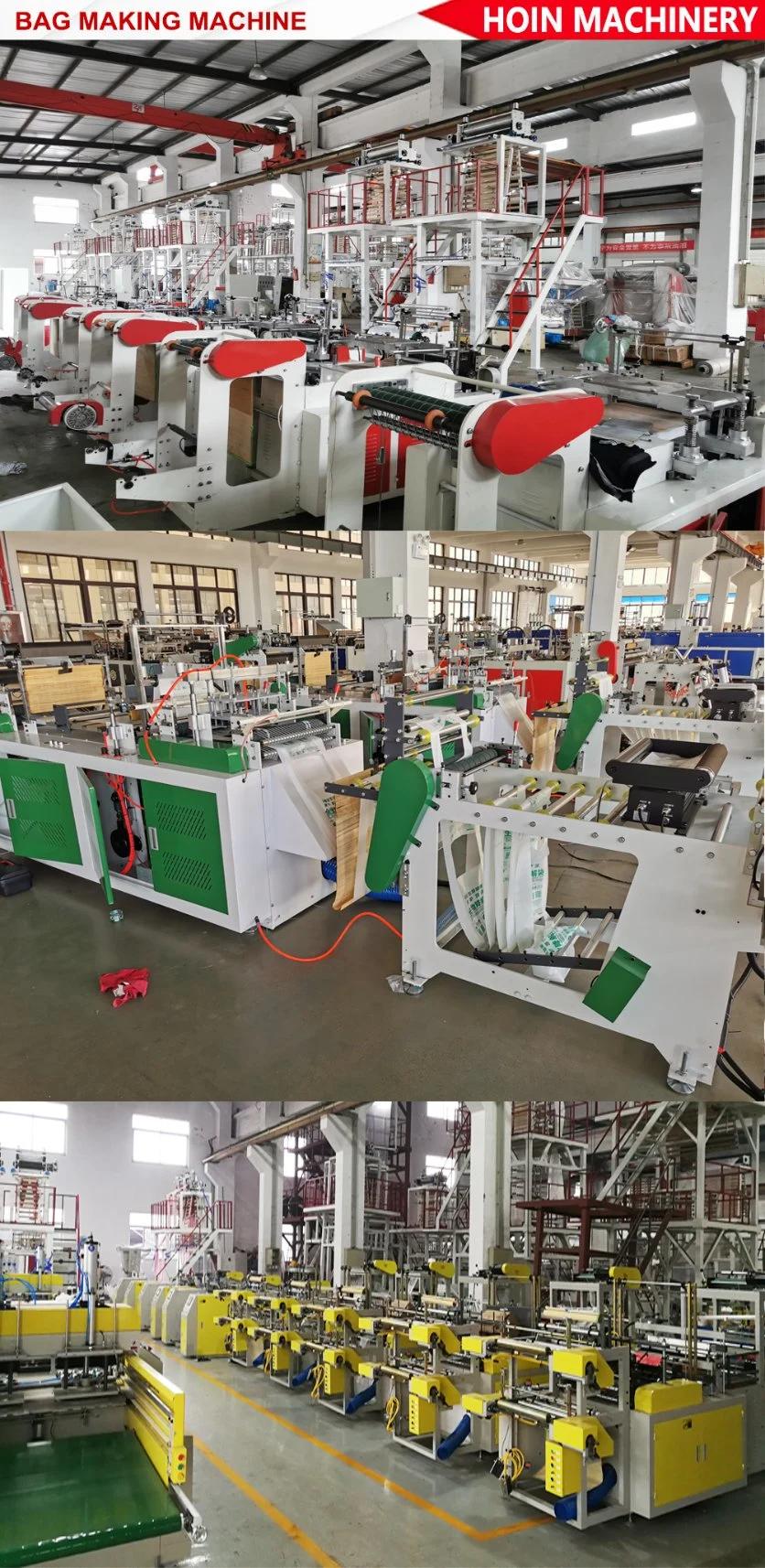

Agricultural Mulch Film Blowing MachineAgricultural Mulch Film Blowing MachineAgricultural Mulch Film Blowing MachineMore Products Optional:
Agricultural Mulch Film Blowing MachineAfter service of HOIN
1. How long will your engineer reach to our factory?
Within one week after machine arrival at your factory.
2. How many days will you finish installing?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary 100USD per day per person.
4. How long of your machine's warranty period?
Our machines have one year guarantee after finishing installation.
5. How could we do after one year warranty period?
We will still offer you our best after service, and need you to afford our technician's cost.
6. Can you find us any engineer in our location?
Of course, we will check and inform you as soon as possible.
Any query please feel freely to contact with us!

MS.WendyPan
