ABA Film Blowing Machine to Make The HD/Ld Film with Auto Winder

Ruian Hoin Machinery Co., Ltd.
  • After-sales Service：Technical Support Online
  • Warranty：One Year
  • Type：PE Film Blowing Machine
  • Raw Material：PE
  • Maximum Folding Width of Film：800mm
  • Screw Diameter：50mm

Base Info

  • Model NO.：F3B-ABA-900
  • Automation：Automatic
  • Computerized：Computerized
  • Machine Weight：4000kgs
  • Certification：CE, ISO9001:2008
  • Suitable Material：LDPE,HDPE,LLDPE
  • Output：85kg,H
  • Die Size：80 and 180mm
  • Air Blower Motor：4kw
  • Rewinder：Friction Type Single Winder
  • Transport Package：Wooden Package
  • Specification：5500*3700*5000
  • Trademark：HOIN
  • Origin：Ruian, Zhejiang, China
  • HS Code：8477309000
  • Production Capacity：30 Sets,One Month

Description

 C: Details Information
1. Extruder Unit
Die Head Material: Cr40 Mould Steel
Die Head Heating: 2 Zones
Rotary Die Head: Optional
Screw and Barrel Material: 38CrMoALA
Screw and Barrel Heating:3Zones*3Sets
Heating Ring Material: Cast Aluminum
Screen Changer: Manual Type
Gear Box: Hard Tooth Surface Gear Box
2. Take Up Section
'A' Shape Film Forming Plate: Wooden Bar Type
Film Bubble Setting Ring: Wooden Bar Type
Take Up Motor:Three-Phase Asynchronous Motor with Worm Gear Reducer
Take Up Rollers Grasp: Air Cylinder

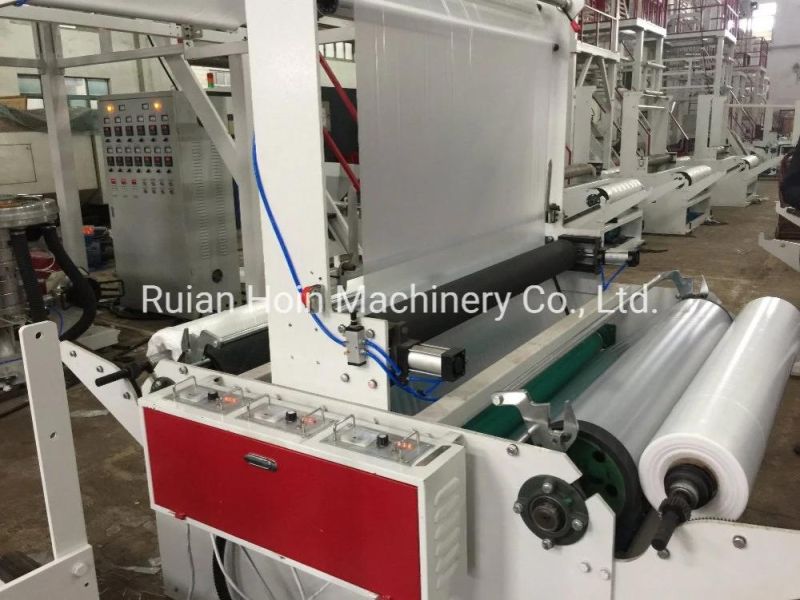

3. Winder Unit
Second Take Up Unit: Air Cylinder
Rewinding Station: Double Stations
Rewinding Motor: Torque Motor
Pinch Roller: Air Shaft Roller

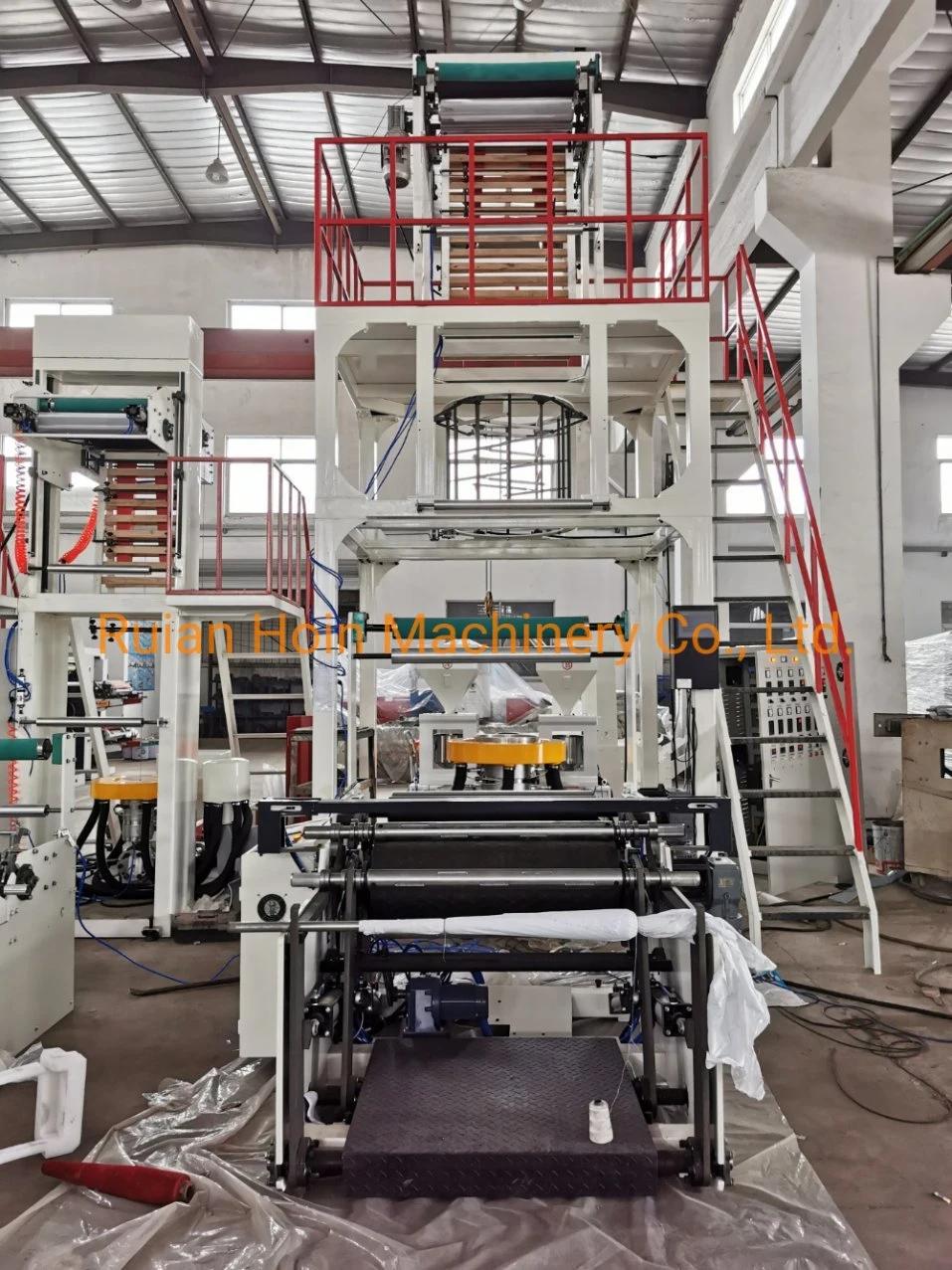

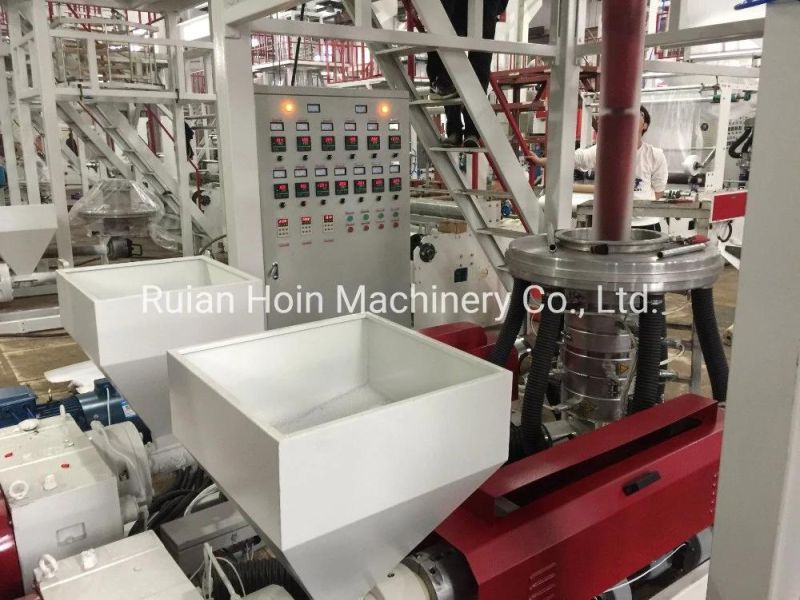

Machine Pictures for Reference:
ABA Film Blowing Machine to Make The HD/Ld Film with Auto WinderF3b-ABA-1300 ABA Three Layer Co-Extrusion Film Blowing MachineF3b-ABA-1300 ABA Three Layer Co-Extrusion Film Blowing Machine

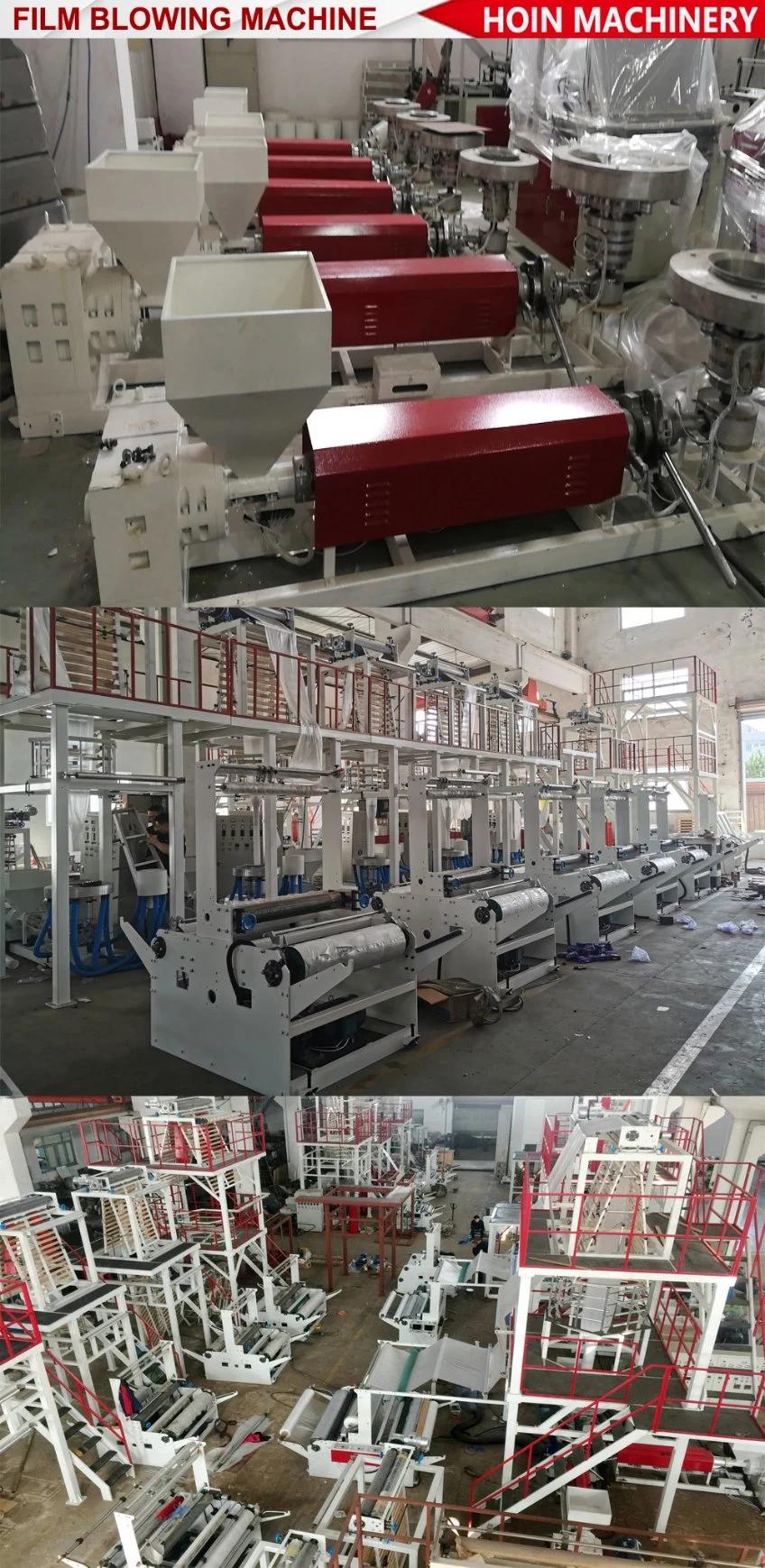

Workshop of HOIN
High Speed PE Film Blowing Machine for HDPE LDPE LLDPEHigh Speed PE Film Blowing Machine for HDPE LDPE LLDPEHigh Speed PE Film Blowing Machine for HDPE LDPE LLDPE

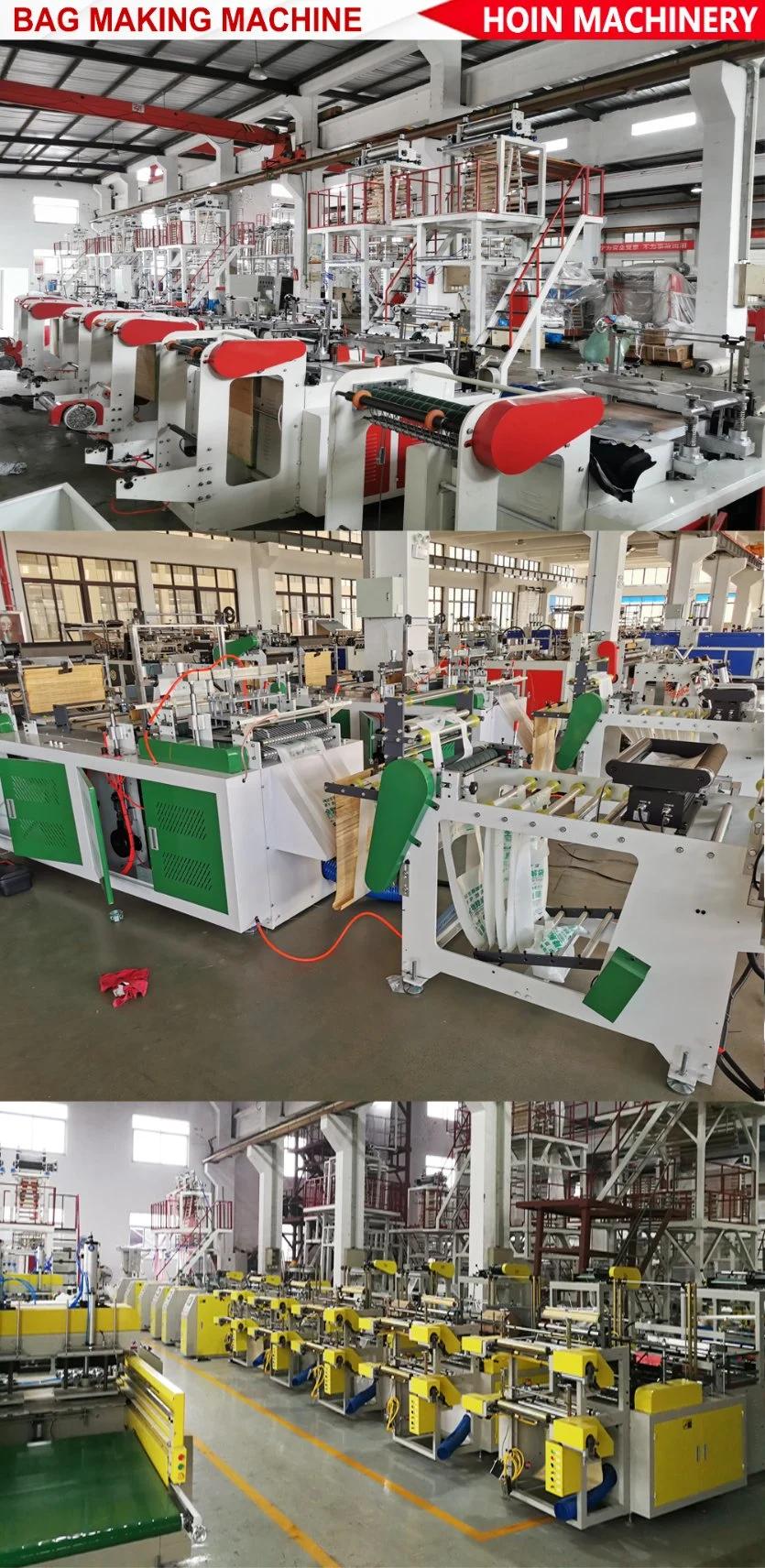

More Products Optional
High Speed PE Film Blowing Machine for HDPE LDPE LLDPEAfter Service of HOIN
1. How long will your engineer reach to our factory?
Within one week after machine arrival at your factory.
2. How many days will you finish installing?
We will finish installation and training within 15days.
3. What should we charge for your engineer?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary 100USDper day per person.
4. How long of your machine's warranty period?
Our machines have one year guarantee after finishing installation under normal operation.
5. How could we do after one year warranty period?
We will still offer you our best after service, of course you will afford our technician's cost.
6. How could we do if the parts broken within of after warranty?
We will express the free replacement parts during the warranty date and also send you parts needed by value after warranty.
7. Does your engineer understand English?
Our engineers understand a little English. All of our engineers have rich experience for installingmachines over seven years. In addition, they also can communicate with you using their body language vividly.
8. Can you find us any engineer in our location?
Of course, we will check and inform you as soon as possible.

Any query pls feel free to contact with us!
MS. WendyPan
