• Model NO.：HY-61,62B
• Computerized：Computerized
• Automation：Non-Automatic
• Driven Type：Pneumatic
• Shaping Mode：on Molding
• Raw Material：BOPS,PS,PVC,Pet
• Application：Plastic Packing
• Brand Name：Hongyin
• Model Number：Hy-61,62b
• Processing Type：Plastic Thermoforming Machine
• Product Type：Plastic Packaging
• Transport Package：Wooden Packing
• Specification：CE
• Trademark：HongYin
• Origin：Zhejiang Ruian
• Production Capacity：15 Sets,Month

Basic Info.

Model NO. HY-61/62B Computerized Computerized Automation Non-Automatic Driven Type Pneumatic Shaping Mode on Molding Raw Material BOPS/PS/PVC/Pet Application Plastic Packing Brand Name Hongyin Model Number Hy-61/62b Processing Type Plastic Thermoforming Machine Product Type Plastic Packaging Transport Package Wooden Packing Specification CE Trademark HongYin Origin Zhejiang Ruian Production Capacity 15 Sets/Month

Product Description

I.Introduction With The Machine
HY-61/62 Semi-Automatic Plastic Thermoforming Machine is a combination of mechanical, electrical and pneumatic components, and the whole system was controlled by a micro PLC, which can be operated in man-interface.It combines the material sending, heating, forming into one process.It has three operation models." manual", " semi-automatic" and "automatic, so it is a new generation ideal package equipment telecommuting and memory reserve functions.

1Forming area:610×620mm	2Forming depth:100mm
3Sheet thickness range:0.1-1.2mm	4Sheet roller diameter:710mm
5Semi-automatic: Yes	6Ari pressure:0.7Mpa
7Water consumption: Liters/min(15-20ºC)	8Air consumption:1800 Liters/min
9Speed:600-1500 Liters/min	10Power:3-N AC380V±10%  50HZ
11Preheater power:2kw	12Mould plate heating power:4.8kw
13Heating plate power:15kw	14Sheet width:650mm
15Weight:2000kg	16Dimension(L×W×H): 4150×1150×2160×(mm)

II.Application Area:

It is suitable to form BOPS, HIPS, PS, PVC and PET plastic sheets etc., which can produce various of boxes, dishes, trays, bowls and lids, such as food boxes, cake boxes, fast-food boxes, supermarket trays, oral liquids trays etc.

III.Machine Picture

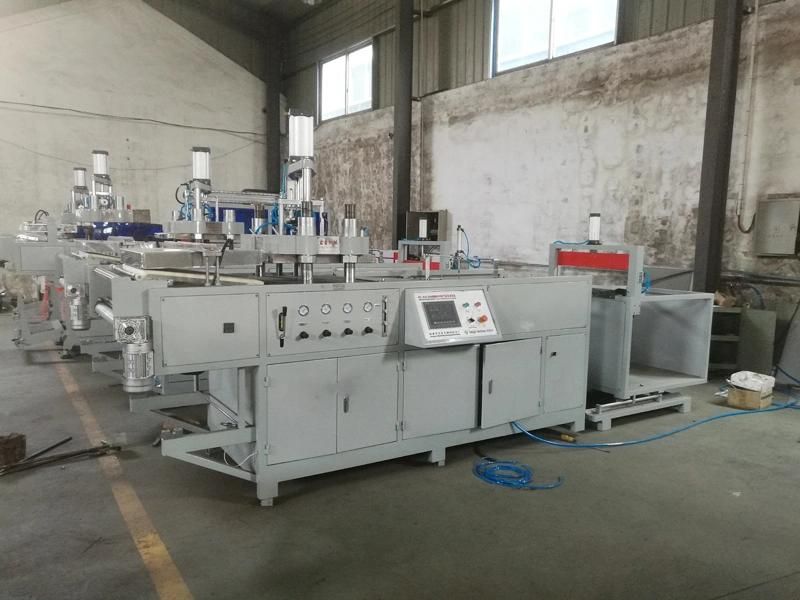

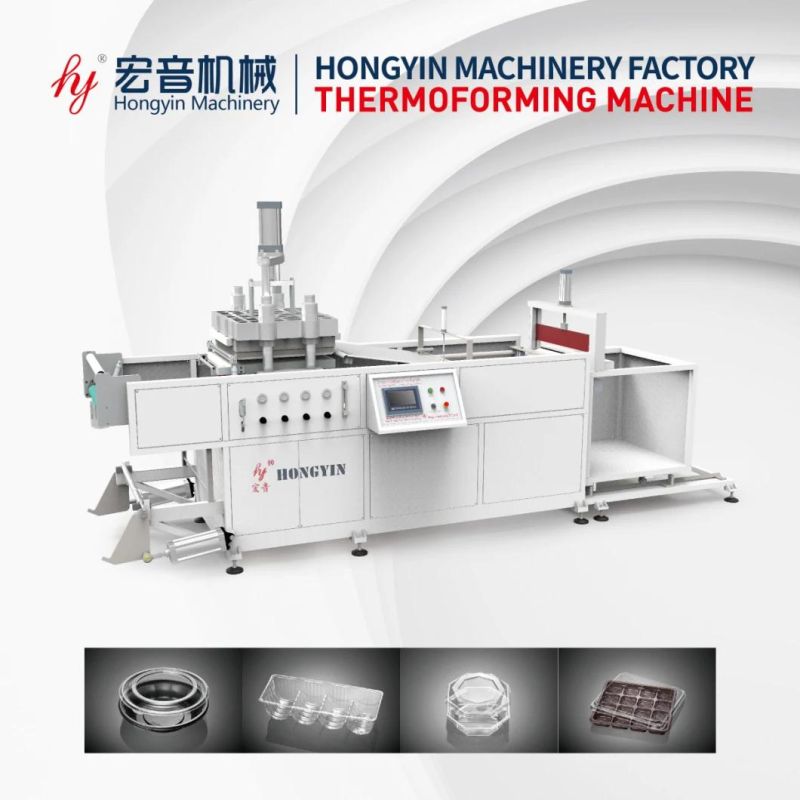

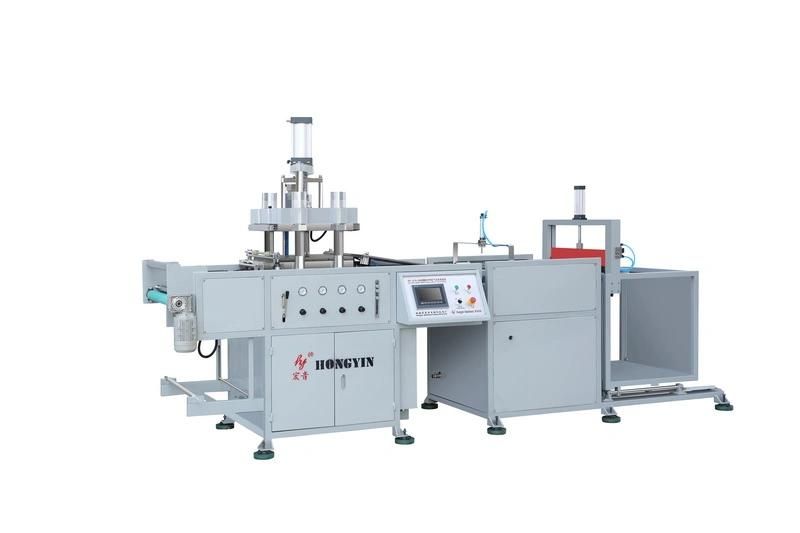

The HY-61/62 plastic forming machine
The main forming machine need a alone cutting machine to finshed cutting edge .





HY-61/62 thermoforming machine products samples

About Ruian Hongyin Machinery Co., Ltd Service.

1. Pre-sales Service
Hongyin MACHINERY has a specialized and efficiency working team. If you are new on the plastic forming machine area, we are glad to give you specialized suggestion of the whole work.

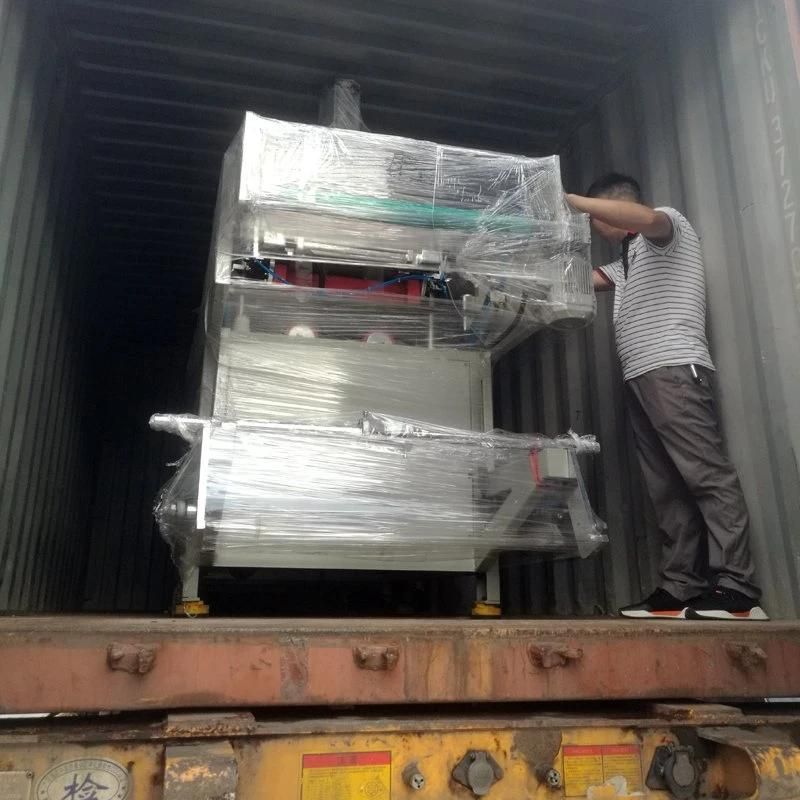

2. Shipping Service
Hongyin MACHINERY has a specialized and independent department to arrange the shipment. We will prepare all the necessary documents so as to arrange the delivery smoothly.
We cooperate with the most famous shipping company in China, they could provide the best and economic shipping ways to the destination.

3. Installation Services
Installation Services are available with all Hongyin Company machines. We could dispatch technician to the Buyer's factory for installation and preparation of the machines.
The buyer needs to supply the round trip tickets, food, hotel cost and daily salary.

4. Clients Training Services
The buyer could also send your own technician come to Hongyin factory to learn how to operate machines. Our technician will teach and train the learners hand by hand till he can operate machine by himself.

5. After Sales Service
Hongyin Company machines guarantee time is one year.
Many easy broken spare parts will be prepared in the tool box together with machines.


If you are interested in our machine, please feel free and contact me.
