• Model NO.：HSD
• Customized：Customized
• Condition：New
• After-sales Service：Overseas Installation, Free Technical Supporting
• Pipe Diameter：1000-1200mm
• Pipe Color：Black + Yellow or Blue
• Extrusion Process：Multi-Layer Extrusion
• Calibration Method：Vacuum
• Transport Package：Standard Package for Export
• Specification：ISO9001: 2008, CE
• Trademark：Huashida
• Origin：Qingdao, China
• HS Code：8477209000
• Production Capacity：20 Sets

Basic Info.

Model NO. HSD Customized Customized Condition New After-sales Service Overseas Installation, Free Technical Supporting Pipe Diameter 1000-1200mm Pipe Color Black + Yellow or Blue Extrusion Process Multi-Layer Extrusion Calibration Method Vacuum Transport Package Standard Package for Export Specification ISO9001: 2008, CE Trademark Huashida Origin Qingdao, China HS Code 8477209000 Production Capacity 20 Sets

Product Description

Plastic PE HDPE Solid Wall Water Gas Supply Pipe Extrusion Line



Style	SPEG-110	SPEG-160	SPEG-250	SPEG-450	SPEG-630
Pipe diameter mm	Φ 20-Φ 110	Φ 50-Φ 160	Φ 63-Φ 250	Φ 110-Φ 450	Φ 315-Φ 630
Product capability(KG/H)	250	28	350	600	900
Installed power(KW)	180	260	210	277	522
Dimension(m)	26× 1.8× 3	36× 1.8× 3	36× 1.8× 3	49.8× 3.02× 3.0	57.8× 3.4× 3.9
Weight(ton)	12.5	13	14.5	27.5	41

Introduction
HDPE pressure Pipe Extrusion Line is a pipe extrusion line developed by HSD. It is applicable for extruding of PE, PP, PB, PERT, ABS etc.


Plastic Pipes produced by this line have excellent stiffness, flexibility, high mechanical strength, the resistance of environmental stress cracks, resistance to creep deformation, heat-linkage and so on. It has become the first choice for the city gas pipe, water supply pipe, foundation pipe, landfill collection pipe, watermain, geothermal heating etc.

Application
HDPE pipe extruding line composed of a single screw extruder and corresponding auxiliaries can produce all kinds of small diameter HDPE plastic pipes continuously. It also can be used to produce PS, PP, HDPE plastic pipes after replacing the screw. HDPE plastic pipe is widely used for liquid conveying in the agricultural, chemical industry, construction industry, etc.

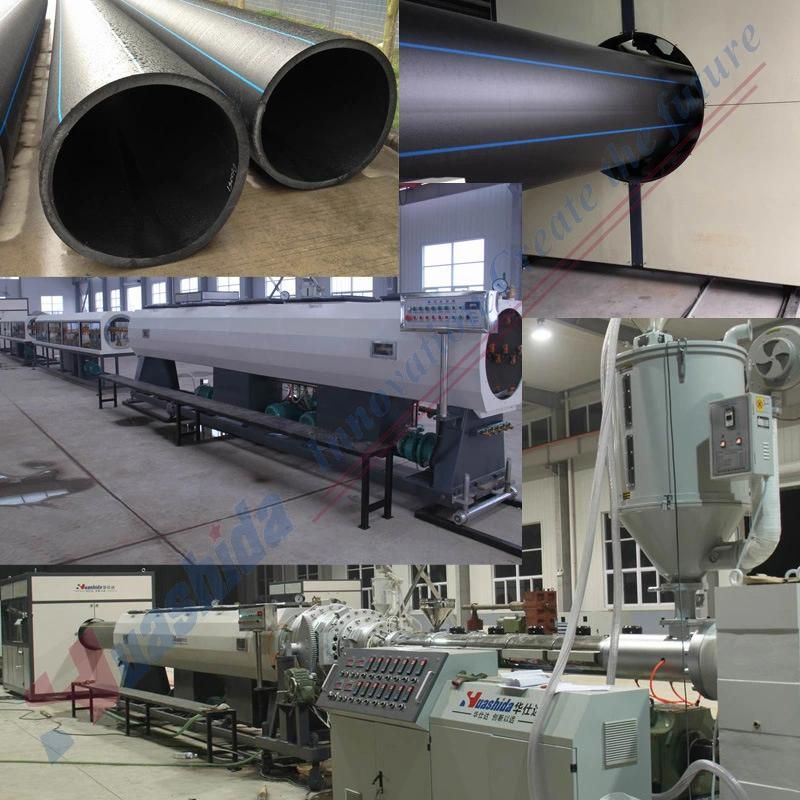

Structure

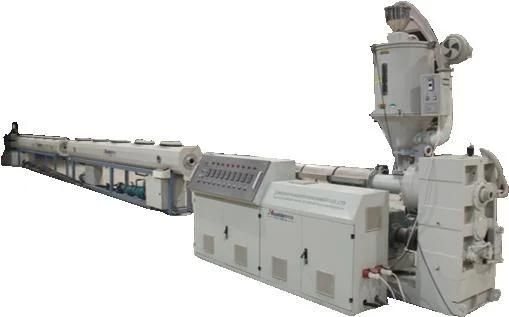

HDPE pipe extruding line is mainly composed of a single screw extruder, die-head, vacuum forming tank, spray cooling tank, haul-off device, cutting device, and pneumatic discharging frame.

1. Single Screw Extruder
Single screw extruder is composed of AC motor, hard toothed surface reduction gear, extruding system, heating and cooling system, and electrical controlling part. AC motor transfers the power to reduction gearbox via V-belt wheel and make screw rotate at a certain speed to adapt to extruding all kinds of plastics.

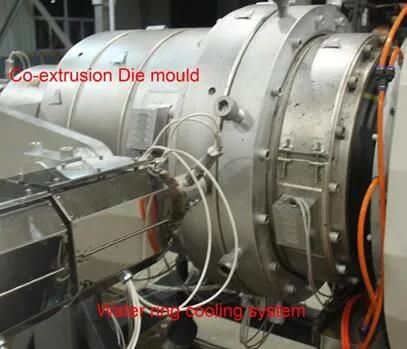

2. Die-Head
Die-head is mainly composed of mandril, neck mold, spiral body, cover, die-head body, bolts, and heating rings. The inside surface touching with plastic materials is polished and chrome plated to ensure plastic materials flow smoothly and to ensure no rusting. The uniformity of pipe wall thickness can be adjusted by bolts. The copper calibrating sleeve fixed in die-head is mainly used to cool down the fresh pipe and to calibrate the pipe outer diameter.

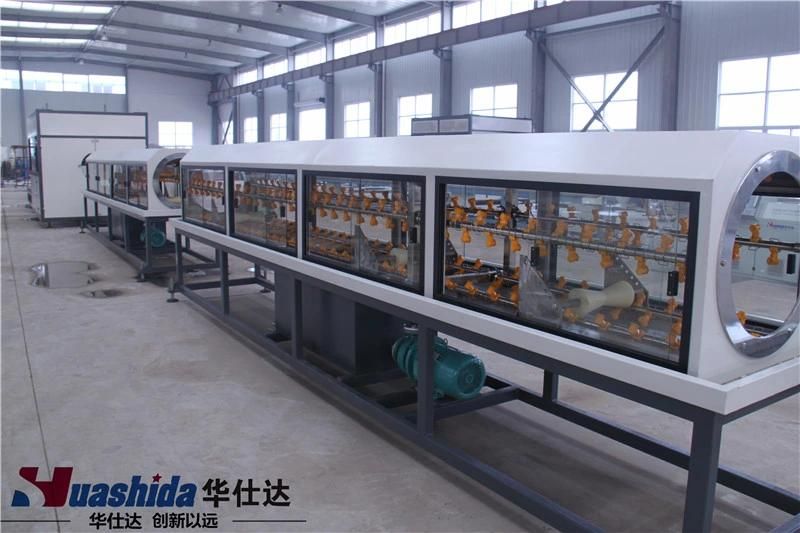

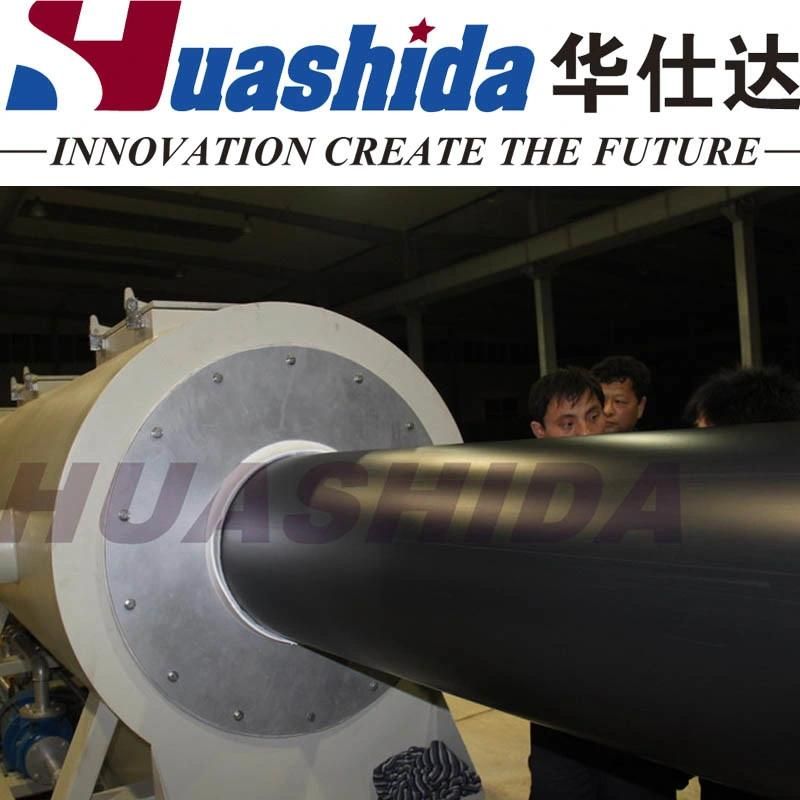

3. Vacuum Forming Tank
Vacuum forming tank is mainly composed of frame, stainless steel tank, vacuum system, spray cooling system, back and forth mobile device. When it is at work, the vacuum pump exhausts the air from the sealed tank to pressurize the fresh pipe cling to calibrating copper sleeve and to realize calibrating the pipe outer diameter. Spray cooling system is used to cool down the extruded pipe by water. Spray nozzles spray cooling water from all directions on pipe surface to cool down the pipe promptly.


4. Water Cooling Tank
Water cooling tank is mainly composed of frame, stainless steel tank, and spray cooling system. Spray cooling system is used to cool down the pipe further and to realize cooling completely and forming.

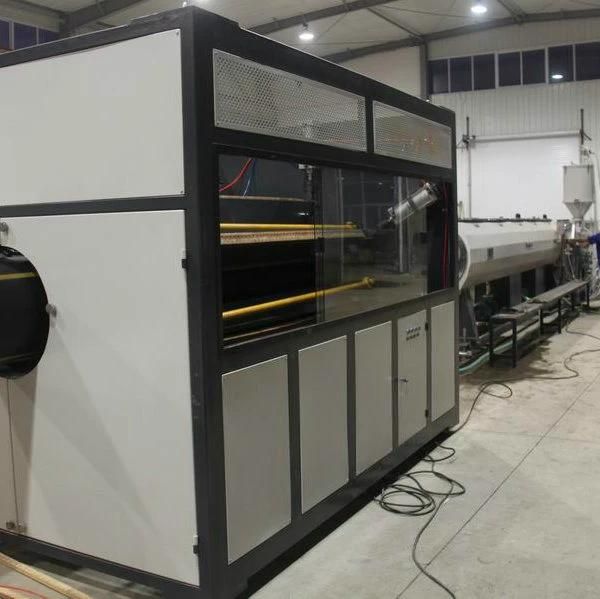

5. Haul-off Machine
The haul-off machine is mainly composed of a driving device, haul-off tracks, clamping structure, adjusting system, side plate, and foundation bed. Haul-off are AC motor driven and adopt frequency control of speed to adapt to different pipes extruding speed. It is also equipped with an automatic length measuring device to realize cutter cutting at a set length.

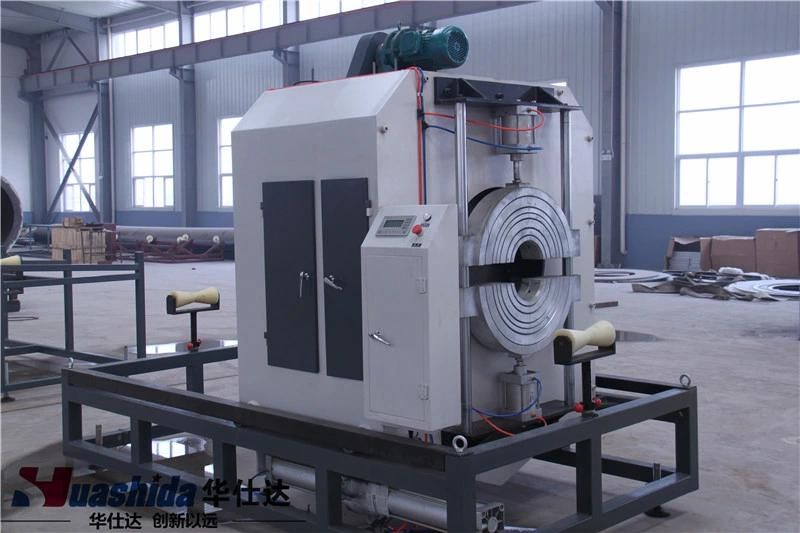

6. No-Dust Cutter
It adopts the blade punching principle to realize no-dust cutting. It is mainly composed of a cutting device, clamping device, structure synchronous mobile device, and frame.

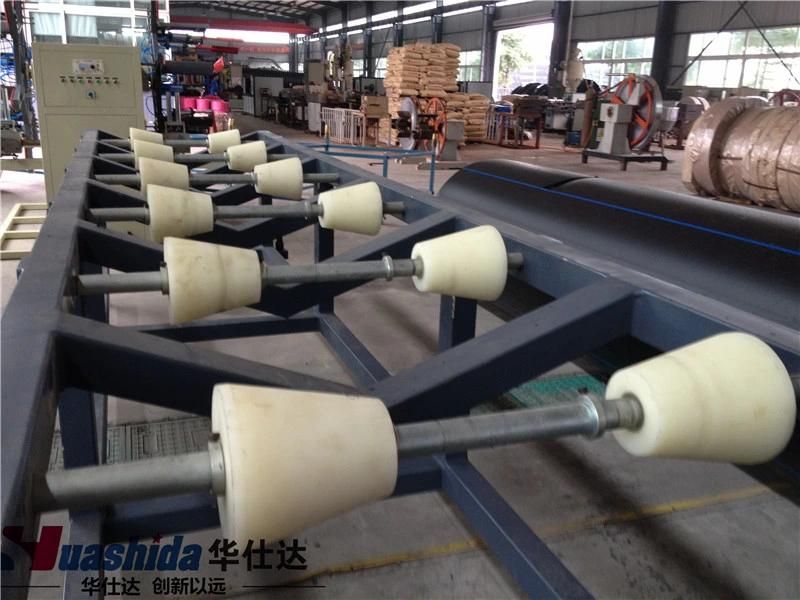

7. Discharging Frame
The table surface is made of stainless steel. It adopts pneumatic overturn and discharges automatically.
