Bubble Wrap Making Machine
Ruian Queensense Machine Co., Ltd.- After-sales Service:1
- Warranty:1
- Type:Pipe Extruder
- Plastic Processed:PE
- Feeding Mode:Multiple Feed
- Assembly Structure:Integral Type Extruder
Base Info
- Model NO.:QSPE
- Screw:Twin-Screw
- Engagement System:Non-Intermeshing
- Screw Channel Structure:Deep Screw
- Exhaust:Exhaust
- Automation:Non-Automatic
- Computerized:Non-Computerized
- Screw Diameter:60mm,45mm
- Width of Production:1000mm,1200mm,1500mm
- Output:20-60kg,H
- Bubble:Can Be Special
- Transport Package:Seaworthy
- Specification:CE SGS
- Trademark:QUEENSENSE
- Origin:Wenzhou China
- HS Code:8477309000
- Production Capacity:1000PCS,Year
Description
Basic Info.
Model NO. QSPE Screw Twin-Screw Engagement System Non-Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Non-Automatic Computerized Non-Computerized Screw Diameter 60mm,45mm Width of Production 1000mm/1200mm/1500mm Output 20-60kg/H Bubble Can Be Special Transport Package Seaworthy Specification CE SGS Trademark QUEENSENSE Origin Wenzhou China HS Code 8477309000 Production Capacity 1000PCS/YearProduct Description

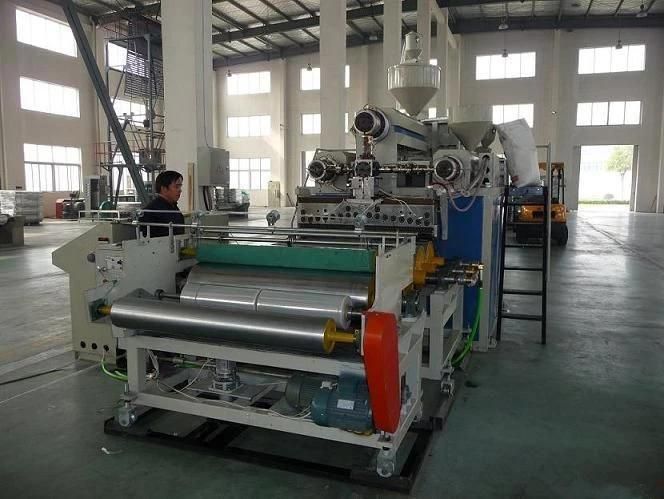

This aircrew adopts the disposable shaping craft. It is our company that draws domestic and inter national advanced technology extensively, through a great deal of production practices in having ordinary, develop, designing, can produced polyethylene compound bubble(cushion) membrane in succession. Designs science, practical, rational in structure of the machine.
Model | QSPE-1000 | QSPE-1200 | QSPE-1500 |
Screw diameter | 60mm,45mm | 65mm,50mm | 75mm,55mm |
aspect ratio | 28:1 | 28:1 | 28:1 |
power of motor | 11kw,7.5kw | 15kw,11kw | 18.5kw15kw |
width of production | 1000mm | 1200mm | 1500mm |
bubble size | 6*3.2mm, | 10*3.4mm | 25*10mm |
output | 20-60kg/h | 50-90kg/h | 60-100kg/h |
total installed capacity | 65kw | 85kw | 98kw |
size of machine | 10*6.5*2.5m | 10*7.5*2.5m | 10*8*2.5m |
weight of machine | 4.2t | 5.5t | 6.8t |
