• Blower：3kw
• Automatic：No
• Blow Moulding Type：Extrusion Blow Moulding
• Power(W)：11kw
• Ld Ratio：28:1
• film Width：1200mm
• Weight：1500kg
• Transport Package：Plastic Film; , Wooden Boxes, or as Required
• Trademark：songshan
• Origin：Zhejiang, China (Mainland)

Model

SJ-50

SJ-55

SJ-65

Features

Raw Material

HDPE, LDPE, LLDPE; Virgin and Recycled

Film Width

600mm

800mm

1200mm

Output

30Kgs

40Kgs

65Kgs

Film Thickness

0.01mm-0.15mm

Dimension

4×3×4M

5×3.5×4.5M

6×4×5.5M

Extrusion Unit

Screw Diameter/LD ratio

50mm
28:1

55mm
30:1

65mm
30:1

Motor

11KW

15KW

22KW

Gearbox

133

146

173

Die Head Type

Fixed Die Head

Die Size

50/80mm

80/160mm

160/260mm

Taking-up  Tower

Upper Tower Type

Up and down; embossing roller and gusseting

Roller Length

700mm

900mm

1400mm

Roller Working Way

Opened and Tightened By Air Cylinders

Winding Station

Winder Type

Single winding fraction type

Rollers

700mm

900mm

1400mm

Winding Diameter

650mm

Control Panel

Electronics

Top China Brand

Film blowing machine features:

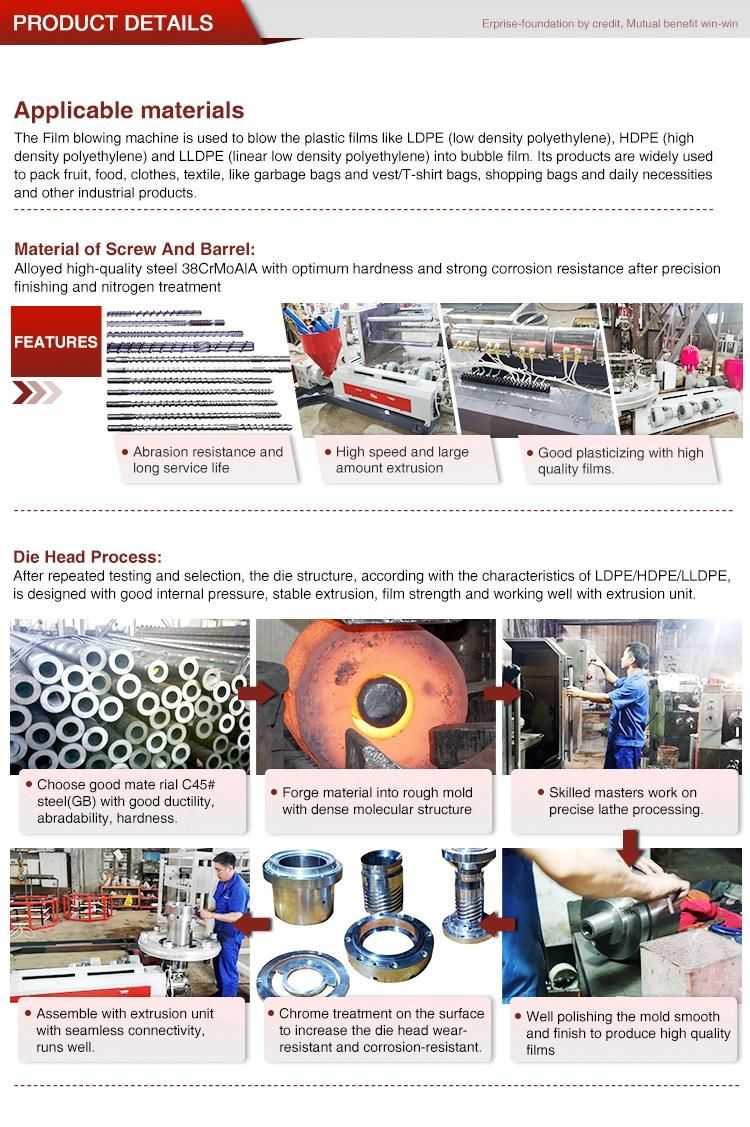

Material of screw and barrel: Alloyed high-quality steel 38CrMoAlA with optimum hardness and strong corrosion resistance after precision finishing and nitrogen treatment

Heaters: stainless heaters

Film blowing machine control Panel

1. Temperature of barrel and die head controlled by digital temperature controller

2. Inverter controls main motor driving speed and film taking up motor running speed

3. Electronics used are all Chinese top brand

4. Current meters and Voltage meters show the working state of motors

5. Small fan installed to avoid high temperature caused by long time running
