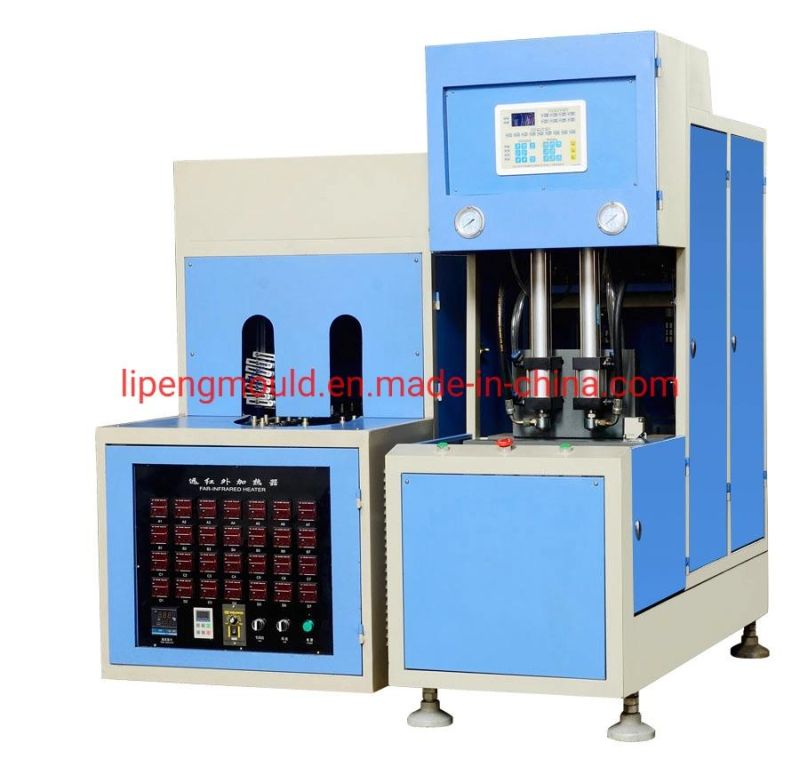

Semi Automatic Blowing Machine for 5L Oil Bottle
Taizhou Huangyan Lipeng Machinery Mould Factory- Type：Stretch Blow Molding Machine
- Automatic Grade：Automatic
- Raw Material：PET
- Making Method of Parison：Stretch Blow
- Automation：Non-Automatic
- Computerized：Computerized
Base Info
- Certification：CE, ISO9001:2008
- Transport Package：Woodencase
- Trademark：LIPENG
- Origin：Taizhou
Description
UNITTECH ,DATA LP - 3P -A Max .Volumn Of Product L 2×2 1×5 Production Capacity Pcs / h 450-900 Neck Size Of Product mm <120 Useful Area Of Mould Plate mm 360×400 Max. Mould Thickness mm 280 Min. Mould Thickness mm 170 Mould Stroke mm 210 Clamping Force kn 80 Stretching Stroke mm 380 Working Pressure Mpa ≤1.2 Blowing Air Pressure Mpa YM-3P-A ≤3.0 Power Of Main Blower kw 0.1 Power Of Preheater kw 11 Weight Of Main Blower kgs 675 Weight Of Preheater kgs 200 Measurement Of Main Blower mm 1800×630×1750 Measurement Of Preheater mm 1800×580×1350 High Pressure
Air Compressor
Measurement 2000×850×1260
5-liter mineral water,beverages,oil,cosmetics,pesticides,civil bottles(PET,PP,PMMA,PC,PS and pp are raw materials)and other plastic containers

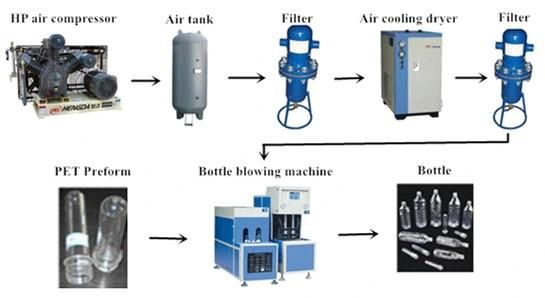

Assistant equipment of blowing machine
Air Compressor
5-liter mineral water,beverages,oil,cosmetics,pesticides,civil bottles(PET,PP,PMMA,PC,PS and pp are raw materials)and other plastic containers
Assistant equipment of blowing machine
