1100mm PE Film Blowin Machine
Xiongqiu Plastic Machinery Co., Ltd.- Type:PE Film Blowing Machine
- Raw Material:PE
- Maximum Folding Width of Film:1000mm
- Screw Diameter:55mm
- Automation:Non-Automatic
- Computerized:Computerized
Base Info
- Model NO.:FM-1100
- Machine Weight:4T
- Certification:CE, ISO9001:2008
- Size(M):4.7*2.75*4.5
- Voltage:380V 50Hz 3phase
- Transport Package:Plastic Film for Container Shipment
- Specification:single layer
- Trademark:Xiongqiu Plastic Machinery Co., Ltd.
- Origin:Foshan, Guangdong Province
- HS Code:8477300000
Description
Basic Info.
Model NO. FM-1100 Machine Weight 4T Certification CE, ISO9001:2008 Size(M) 4.7*2.75*4.5 Voltage 380V 50Hz 3phase Transport Package Plastic Film for Container Shipment Specification single layer Trademark Xiongqiu Plastic Machinery Co., Ltd. Origin Foshan, Guangdong Province HS Code 8477300000Product Description
It is used to blow various plastic film of low density polyethylene(LDPE), high density polyethylene(HDPE) and linear low density polyethylene(LLDPE), etc.. Widely used in packing food stuff, garment and textile, daily product, industrial products and agricultural field.model | thickness | film width | max output | screw diameter | L/D ratio | temp. controller | barrel cooling | drivffing motor | die diameter |
FM-1100 | 0.02--0.20mm | 1000mm | 90kgs/hr | Φ55mm | 30:1 | 5 zone | 120w*2 | 30kw | Φ200mm |
air ring diameter | cooling fan | take up width | effective take up width | take up motor | winder width | effective winder width | winder motor | suitable material |
Φ300mm | 2.2kw | 1100mm | 1000mm | 1.5kw | 1100mm | 1000mm | 1.5kw | LDPE/LLDPE/HDPE |
die structure | spiral mandrel die chrome plated surface 40Cr |
optional equipment | auto-loader device, film surface treater, air compressor, fast change net, double center winder/cage roll flat winder, rotary die head, double wind air ring |

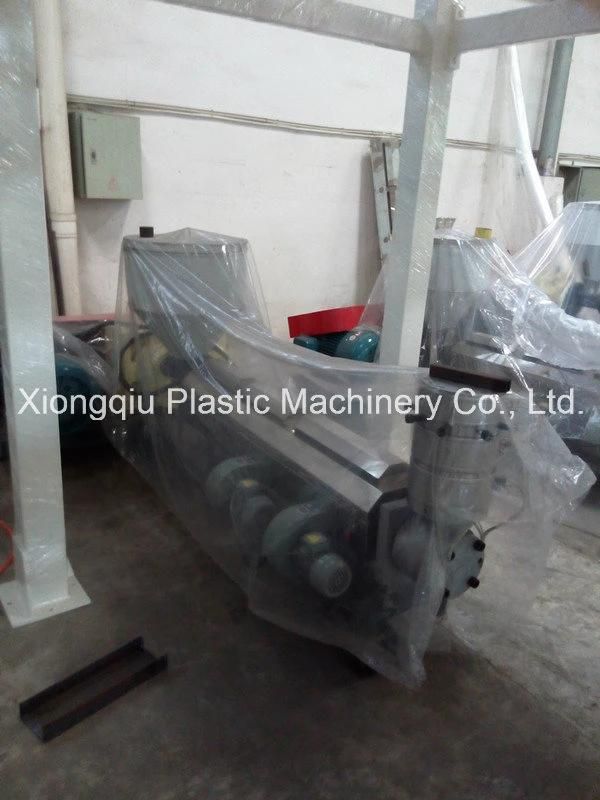

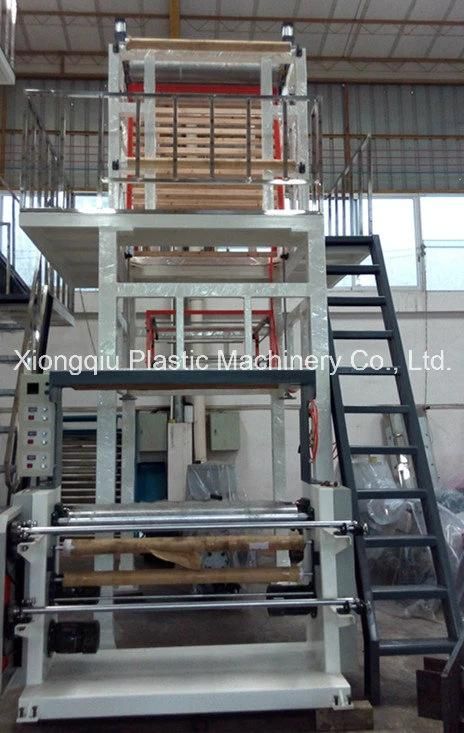

pictures for reference:
