• Model NO.：Plastic Recycling Extruder Machine
• Application：Plastic Recycling
• Model Number：Double Stage
• Quality Control：Test Before Delivery
• Transport Package：Stardand
• Specification：CE SGS BV TUV
• Trademark：PYM
• Origin：Wenzhou, Zhejiang
• HS Code：847790000
• Production Capacity：250-500kg,Hr

Basic Info.

Model NO. Plastic Recycling Extruder Machine Application Plastic Recycling Model Number Double Stage Quality Control Test Before Delivery Transport Package Stardand Specification CE SGS BV TUV Trademark PYM Origin Wenzhou, Zhejiang HS Code 847790000 Production Capacity 250-500kg/Hr

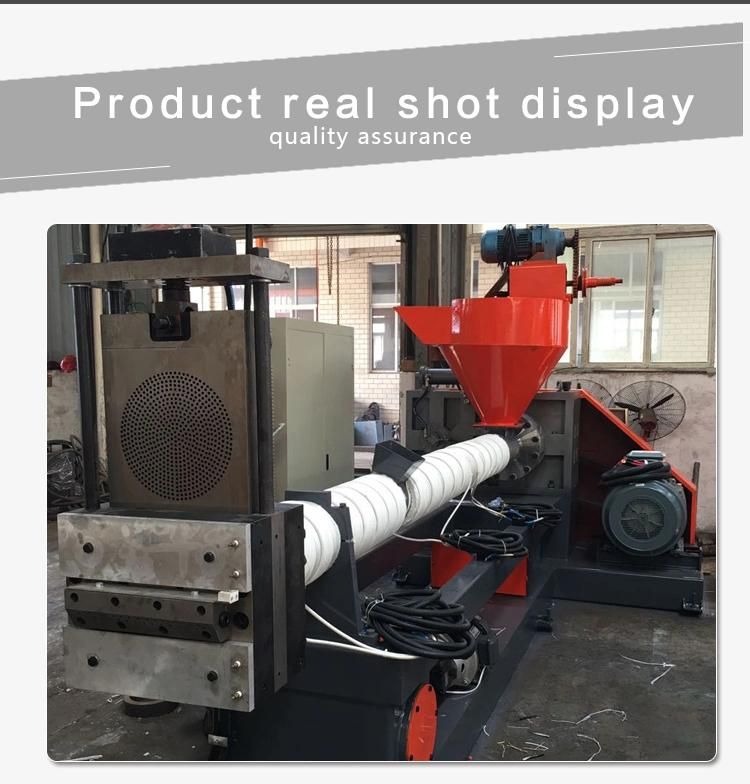

Product Description

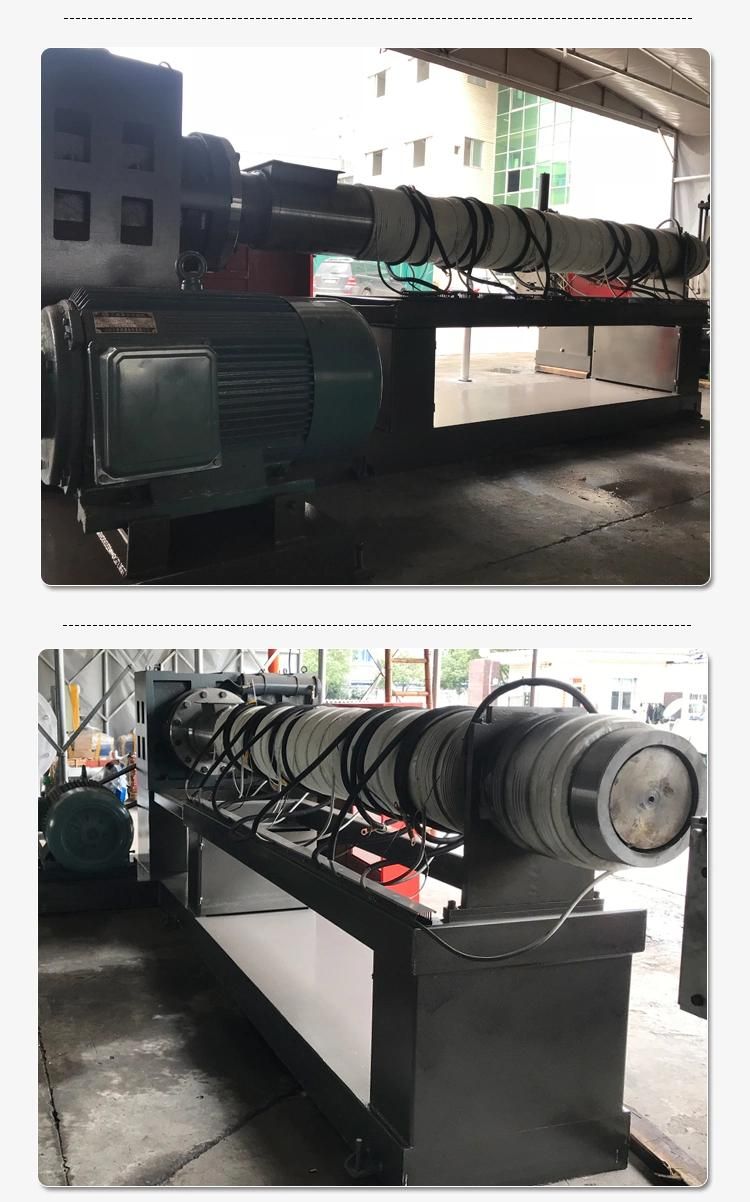

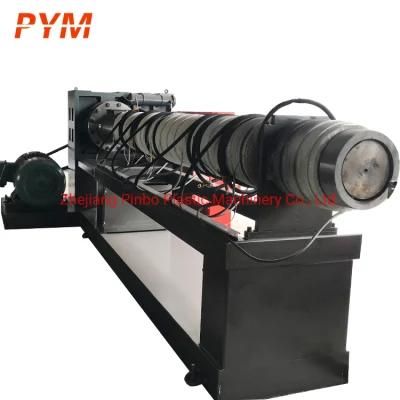

The Main/ First stage

Screw and barrel
Screw dia160mm, Length 2200mm, one set, based on 38CrMoALa material(HV >=950-1100)

Gearbox ZLYJ 280
Motor 55KW, the brand is Huadong, made in Shanghai, quite a good brand in China
Inverter 75KW, the brand is Painier, quite a good brand in china

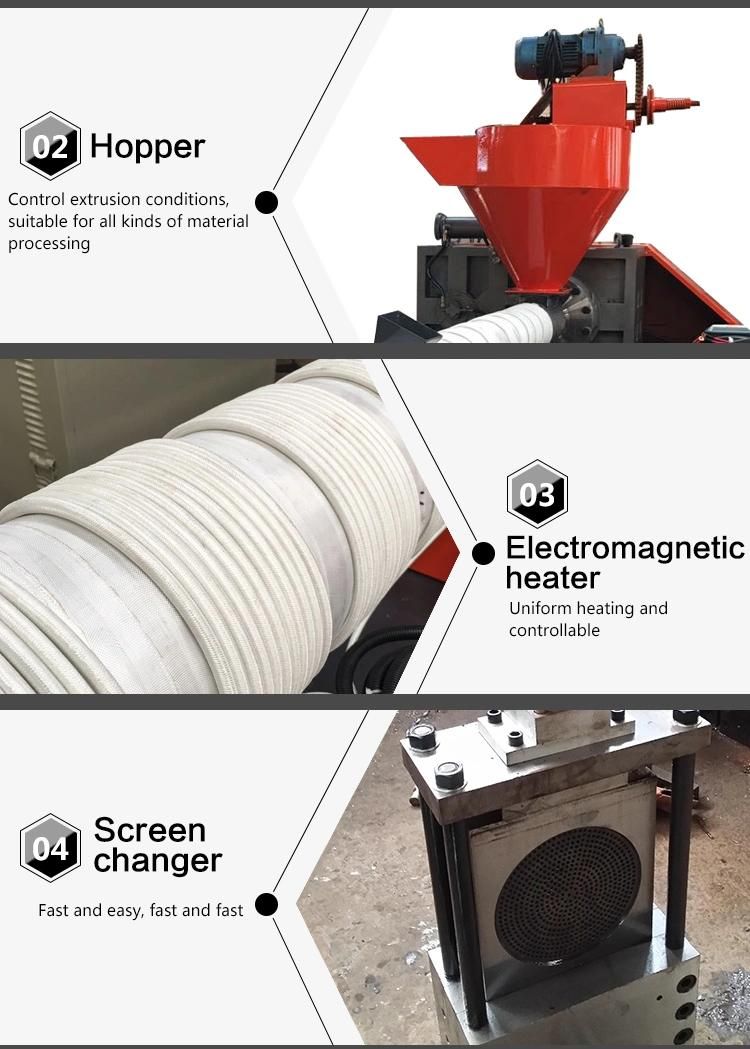

Screen changer with hydraulic pump, 280mmx280mm

The Auxiliary/ Second stage

Screw and barrel
Screw dia130mm, L/d 10: 1, one set, based on 38CrMoALa material(HV>=950-1100)

Gearbox ZLYJ 200
Motor 18.5KW, the brand is Huadong, made in Shanghai, quite a good brand in China
Inverter 18.5KW, the brand is Painier, quite a good brand in china
Screen changer with hydraulic pump, 280mmx280mm

The other parts:

Cutting machine 5kw, one piece, (the knife is made in alloy ) the knife is 200mm width, with 24 pieces with adjusted speed.
Water tank, one piece, in stainless

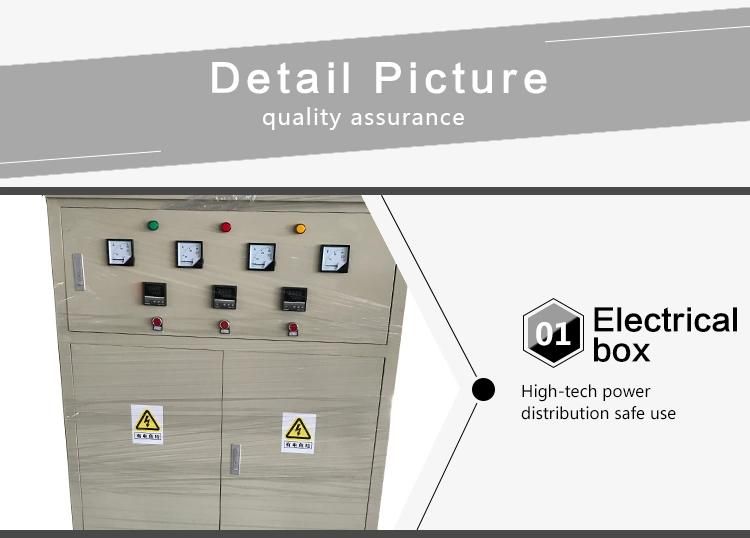

Electrical box, one piece, the brand is Chint, famous brand in china
Container, one piece
