• Model NO.：SJ-65×3,FM2500
• Machine Weight：10600kg
• Certification：CE
• Net Changer Device：Manual
• Air Ring Material：Cast-Aluminum
• Die Head Heating：Stainless Steel Heating Ring
• Machine Color：Yellow and Dark Gray
• Speed Control Motor：Taiwan
• Warranty：One Year
• Temperature Sensor：Taiwan
• Air Ring Type：Double Air Vent Air Ring
• Cooling Fan Power：350W
• Die Head Material：40cr Die Steel
• Transport Package：Plastic Film or Wooden Case
• Specification：8600× 6200× 9600mm
• Trademark：Elight,Xinye
• Origin：Ruian, Zhejiag Province, China
• HS Code：8477309000
• Production Capacity：20sets , Month

Basic Info.

Model NO. SJ-65×3/FM2500 Machine Weight 10600kg Certification CE Net Changer Device Manual Air Ring Material Cast-Aluminum Die Head Heating Stainless Steel Heating Ring Machine Color Yellow and Dark Gray Speed Control Motor Taiwan Warranty One Year Temperature Sensor Taiwan Air Ring Type Double Air Vent Air Ring Cooling Fan Power 350W Die Head Material 40cr Die Steel Transport Package Plastic Film or Wooden Case Specification 8600× 6200× 9600mm Trademark Elight/Xinye Origin Ruian, Zhejiag Province, China HS Code 8477309000 Production Capacity 20sets / Month

Product Description

Three-Layer Co-Extrusion Blown Greenhouse Plastic Film Machine Price




Usage:
The lines are designed developed by our corporation according to market need, they reach the advanced levels in the 90s,come up with analogous lines in Home.

It is optimum Designed on the trends of preference of analogous lines in foreign and Home.

The lines can be blown continuous 1200/1300/1500mm in fold width 0.08mm in the thickness packaging films, from LDPE, HDPE, LLDPE, MLLPE, Baby horizontal extrusion up blown.

The film has good in sudation, for instance holding temperature, anti-humid, ant-breeze, anti-rain, anti-roost, insulation oxygen, oil resistive, and so used for light and heavy-duty packaging, for example fresh fruits, meat-feeding, salt vegetables, fresh milk, drink.





Charteristics:
1.Die head is layer type spiral mandrel, continuous 360, rotation.
2.Screen pack changer Design is rational convenience, reliable, safe in operation.
3.Various functional parts may be installed to the lies, such as length counting device, vertical cutting device, cooling water row pipe, film spreading roller, scrap collecting device.






Main Technical Variables:

Model	SJ-45×3/FM1000	SJ-50×3/FM1200	SJ-55×3/FM1500	SJ-65×3/FM2000	SJ-75×3/FM2500
Screw Dimeter	45mm	50mm	55mm	60mm	65mm
Screw Ratio	L/D30:1	L/D30:1	L/D30:1	L/D30:1	L/D30:1
Screw Speed	15-120r/min	15-120r/min	15-120r/min	15-120r/min	15-120r/min
Main Motor Power	11kw×3	15kw×3	18.5kw×3	22kw×3	30kw×3
Extrusion Output	100kg/h	120kg/h	150kg/h	180kg/h	200kg/h
Range Of Die	200	250	300	500	600
Thickness Of Film	0.01-0.10mm	0.01-0.10mm	0.01-0.10mm	0.03-0.10mm	0.03-0.10mm
Max.Folding Width Of Film	1000mm	1200mm	1500mm	2000mm	2500mm
Total Power	76kw	88kw	102kw	130kw	156kw
Overall Dimension(L×W×H)	6.6×4.1×5.0m	6.8×4.3×6.0m	7.0×5.3×8.6m	7.8×5.3×8.6m	8.6×6.2×9.6m
Weight Of Machine	4200kg	5300kg	6200kg	8600kg	10600kg

Note:These are our standard machine, more wide also canbe customized.
Every smart business as you would understand, the machine with different specification, the quotation would be wide different.

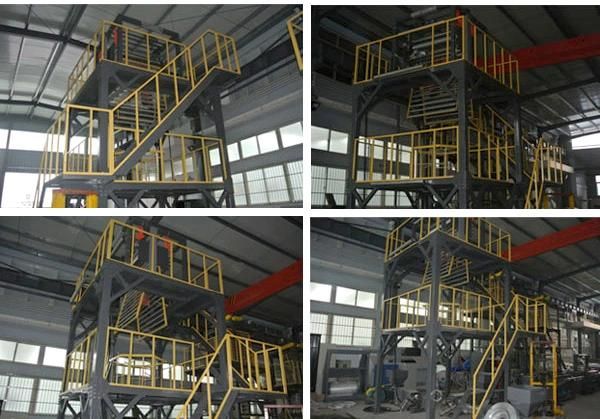

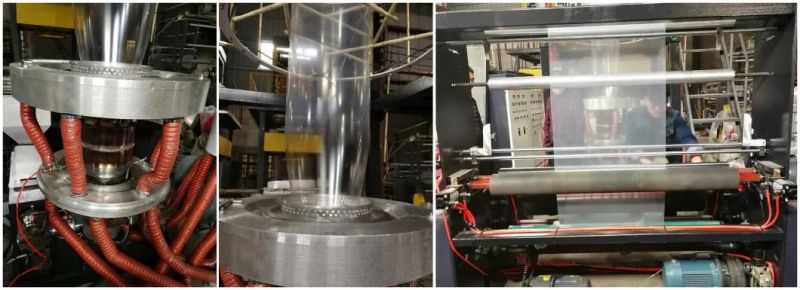

Machine Parts:

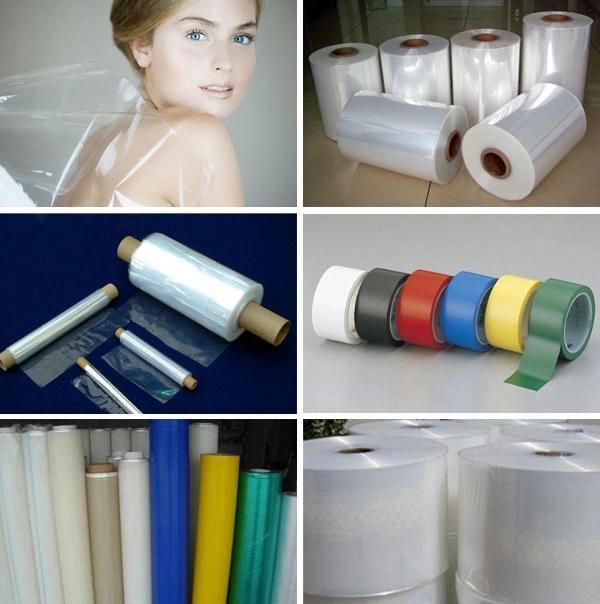

End Products:





Products Advantages:
1.Top quality
2.Large output
3.Delivery timely
4.Competitive price
5.Satisfying service
6.Old and experienced factory





Payment:
30%T/T payment of total value in the contract should be paid before production. And 70% T/T balance of total value should be paid before shipment when goods are ready.





Delivery:
20-30 Working days after receiving the deposit by T/T.
If the buyer don't load the machines in six month after paying the deposit and the machines are ready at same time ,the seller will cancel the order and the contract would be invalid.

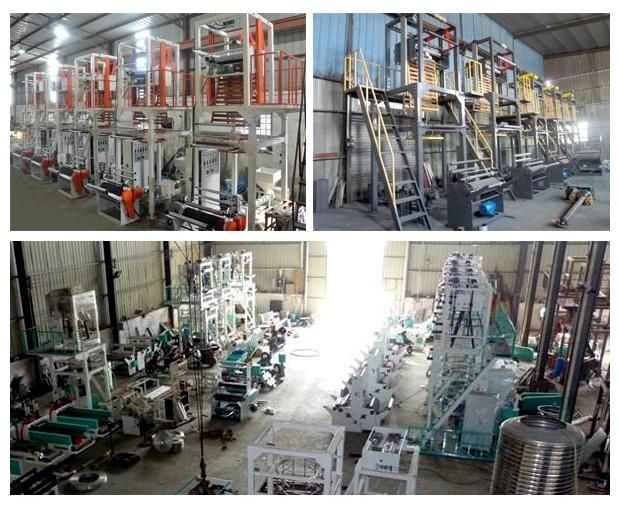

Company Information:
Ruian Xinye Packaging Machine Co.,Ltd. with a long history is located in Ruian economically developed city on the seashore of the East China sea of Zhejiang. It is specialized in producing Series of plastics-packaging equipment.We are engaged in producing bag-making  machine,Printing Machine,Film Blowing Machine, etc.

1) Bag-making Machine:Multifunction bag-making Machine; Arc-shaped bag-making Machine;Autosoft  handle  bag-making  Machine ; high  speed  heat  sealing  and  slitting  bag-making  Machine;Microcomputer control bag-making Machine;Computerized vest bag-making  Machine; Bubble film bag-making Machine ;High speed continous-rolled vest bag-making Machine;
2) Printing Machine: Flexography Press; Rotogravure Printing Press;
3) Film Blowing Machine: HDPE-LDPE  Dual-purpose  Film Blowing  Machine,High  Speed  Film Blowing Machine Unit;
4) Others:Auto Slitting and Rewinding Machine, Hem Folding  Machine, Material Cutting  and Punch Machine.Since its  establishment,  with the purpose of " Gain the customer's confidence  base on good quality."and "Improve continuously,  meet customer's needs",we have won the support and trust from most national and International customers,from the Southeast Asia,the Middle East, Russia,America, Europe and Africa, etc.





Our Services:
Installation services:
    Installation Services are available with all new machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
After sales services:
   We offer the Preventative Maintenance and After Sales Service. For we strongly feels that importance of supporting our customers and the product solutions we provide. Consequently we offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period.






FAQ:
1.Q: Are you a factory or trading company?
    A: We are established in 1995, an actual factory and manufacturer in the line of printing and packing machine for 20 years.
2.Q: Where is your factory loaded? How can I visit there?
   A: Our factory located in Rui'an city, Zhejiang Province, China, about one hour by air from Shanghai. All our clients, from home or abroad, are warmly welcome to visit us.
3.Q: Which industries are widely used in of your machine?
   A: Bag making machine, film blowing machine, printing machine.
4.Q: How about the payment term?
   A: For new customer, our payment term is 30% T/T in advance before production, the balance 70% should be paid before delivery.
5.Q: What about your main market?
   A: Our products be sold well in 30 provinces in China and have good reputation in China, also we pay attention to developing the oversea market, such as Europe, Russia, Southeast Asia, Middle and South America, Africa, and other countries.
6.Q: How does your factory do regarding quality control?
   A: Quality is the most important principle. GREAT WALL always attach great impartance to quality controlling from the every beginning to the every end. Our factory has passed SGS and CE certifications.
