• Model NO.：RM-2000A Injection Molding Machine
• Computerized：Computerized
• Certification：CE, ISO9001:2008
• Products Name：Injection Molding Machine
• Feature：Energy Saving
• Advance：High Speed
• Clamping Force：2000kn
• Opening Stroke：500mm
• Suitbale Material：PP PE PS Pet HDPE
• After-Sales Service Provided：Installation and Training
• Control System：Siemens PLC Touching Screen
• Application：Preform and Cap Making
• Warranty：Two Year Global Guarantee
• Transport Package：Exported Wooden Case
• Specification：5.9*1.5*2.0m
• Trademark：Reliable Injection Machine
• Origin：Jiangsu Zhangjiagang
• HS Code：8477101090
• Production Capacity：5 Sets of Injeciton Molding Machine Per Month

Basic Info.

Model NO. RM-2000A Injection Molding Machine Computerized Computerized Certification CE, ISO9001:2008 Products Name Injection Molding Machine Feature Energy Saving Advance High Speed Clamping Force 2000kn Opening Stroke 500mm Suitbale Material PP PE PS Pet HDPE After-Sales Service Provided Installation and Training Control System Siemens PLC Touching Screen Application Preform and Cap Making Warranty Two Year Global Guarantee Transport Package Exported Wooden Case Specification 5.9*1.5*2.0m Trademark Reliable Injection Machine Origin Jiangsu Zhangjiagang HS Code 8477101090 Production Capacity 5 Sets of Injeciton Molding Machine Per Month

Product Description

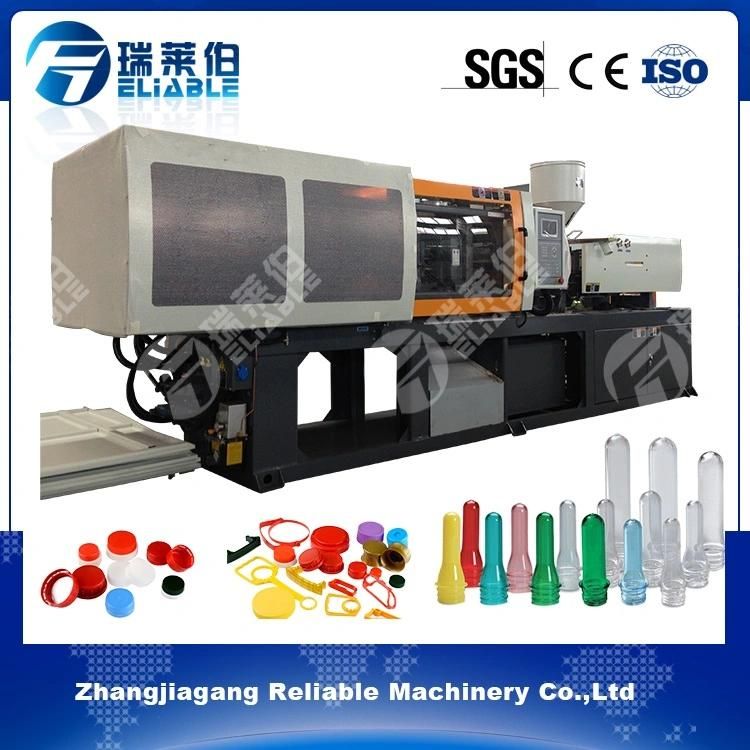

Automatic Plastic Injection Molding Machine for PET Preform

Specifications ---  Injection Molding Machine
1. Injection Moulding Machine
2. Injection Machine
3. PVC Injection Machine
4. Sole Injection Machine
5. Plastic Injection Moulding Machine

Technical parameters of Injection Molding Machine

Item	Unit	Data
Max. clamping force	KN	2000
Max. opening force	mm	500
(V×H)Space between tie bars	mm	505×505
(min-max) Mould height	mm	190-530
Max. daylight	mm	1030
Ejector force	KN	53.1
Ejector stroke	mm	125
Ejector quantity		5
Screw diameter	mm	55
Screw L/D ratio	L/D	21
Theoretical shot volume	cm 3	594
Plasticising weight(PS)	g	540
Injection pressure	Mpa	178
Theoretical injection rate(PS)	g	175
Plasticising capacity(PS)	g/s	28.7
Screw torque	N.m	1510
Max. screw rotate speed	r/min	170
Injection stroke	mm	250
Pump motor power	KW	18.5
Pump pressure	Mpa	16
Heating power	KW	16.6
Heating zone		4
(L×W×H) Size	m	5.9×1.5×2.0
Net weight	t	6.8
Oil Tank Capacity	L	420
International designation		2000-1060

Plastic Injection Molding Machine for PET Preform

Features ---  Injection Molding Machine
(1) Automatic PET Prefrom Injection Molding Machine is equipped with high performance servo motor controlling system, the machine's output power can vary in accordance with the loading changes which reduce energy consumption and noise.
(2) The motor rotates at lower speed in holding pressure stage, and doesn't work in cooling time.
(3) There is no ectra energy consumption due to output volume changes according to load alteration.
(4)In the phase of holding pressure, servo motor lowers rotate soeed and consumes a little of enerfies.
(5)In the phase of cooling, motor doesn't work and consumes no energy.
(6)According to dfferent products, servo energy-saving injection molding machines will save 20-80% energy and bring you prominent economic benefit.

RELIABLE Service
The sample service
1.we can send you the video of the running machine.
2.you are always welcome to come to visit our factory, and you may see the operation of the machines here . We will make the arrangement to pick you up when you come .
3.If we get the permission of the customer who has brought the machines from us ,we can tell you their contact information, you can go to visit their factory.
Customized service
1.we can design the machines according your requirements(material ,power,filling type,the kinds of the bottles, and so on).
2.at the same time we will give you our professional suggestion .
After-sales service
1.we will provide the bill of load on time to make sure you can get the machine quickly
2.when you finish the Preparation conditions ,our engineer will go to your factory for the installation, testing and also training .
3.we provide one year warranty with spare parts free.

We Warmly Welcome Customers All Over The World To Our Company.If You Have Interests In Our Products,Please Contract With Us FREELY!

ZHANGJIAGANG RELIABLE MACHINERY CO.,LTD
