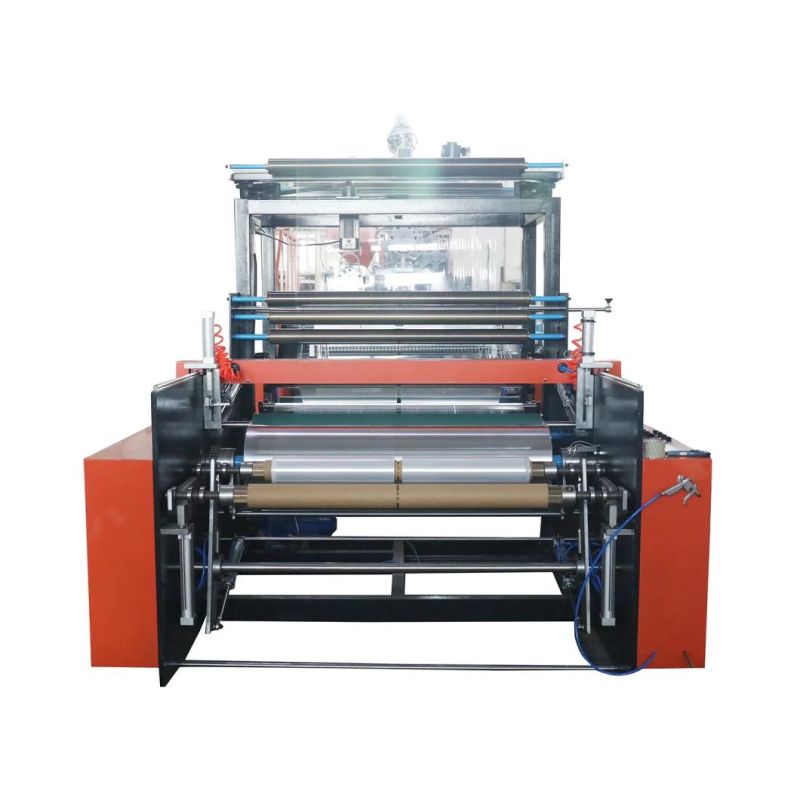

Fangtai LLDPE FT-1500 Stretch Film Making Machine Double Layer
Ruian Fangtai Machinery Co., Ltd.- Type：Sheet Extruder
- Plastic Processed：PE
- Product Type：Granulating Extruder
- Feeding Mode：One Feed
- Assembly Structure：Integral Type Extruder
- Screw：Single-Screw
Base Info
- Model NO.：FT-1500
- Engagement System：Full Intermeshing
- Screw Channel Structure：Deep Screw
- Exhaust：Don′t Exhaust
- Automation：Automatic
- Computerized：Computerized
- Screw Diameter：75mm*2
- Transport Package：Wooden Case, Wooen Block, Plastic Film
- Specification：FT-1500
- Trademark：FANGTAI
- Origin：Ruian City, Zhejiang Province
- HS Code：84778000
- Production Capacity：120kg,H
Description
Basic Info.
Model NO. FT-1500 Engagement System Full Intermeshing Screw Channel Structure Deep Screw Exhaust Don′t Exhaust Automation Automatic Computerized Computerized Screw Diameter 75mm*2 Transport Package Wooden Case, Wooen Block, Plastic Film Specification FT-1500 Trademark FANGTAI Origin Ruian City, Zhejiang Province HS Code 84778000 Production Capacity 120kg/HProduct Description
Single Layer Stretch Film Machine (CE)FT-500-1500 single Layer Co-extrusion Stretch Film Making Machine (Auto Changer)
Use
This machine uses LDPE and LLDPE to produce casting stretch film(could produce one-side sticky film and the other side normal), adopting double screws and double two hoppers. This co-extrusion stretch film is widely used in packing area for architecture, auto parts, hardware parts, etc.
Characteristics
Screw and cylinder are all made of 38 CrMoALA after nitrogen treatment, which has an advantage of corrosion resistance and endurance, etc.
The cooling device adopts cycle water cooling which provide the best transparent effect of the stretch film

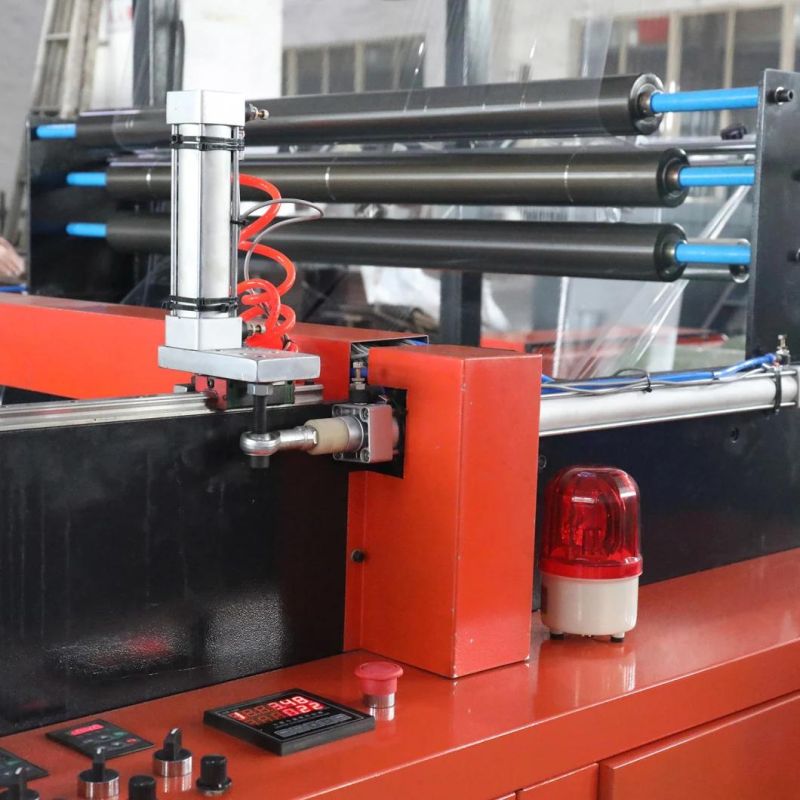

Rewinder adopts with friction-rewinding-type, with cutter device for edge correcting.
OPTIONAL EQUIPMENT
1) AUTO LOADER
2) AIR SHAFT
3) AUTO DRY HOPPER
4) ELECTRIC CHANGE

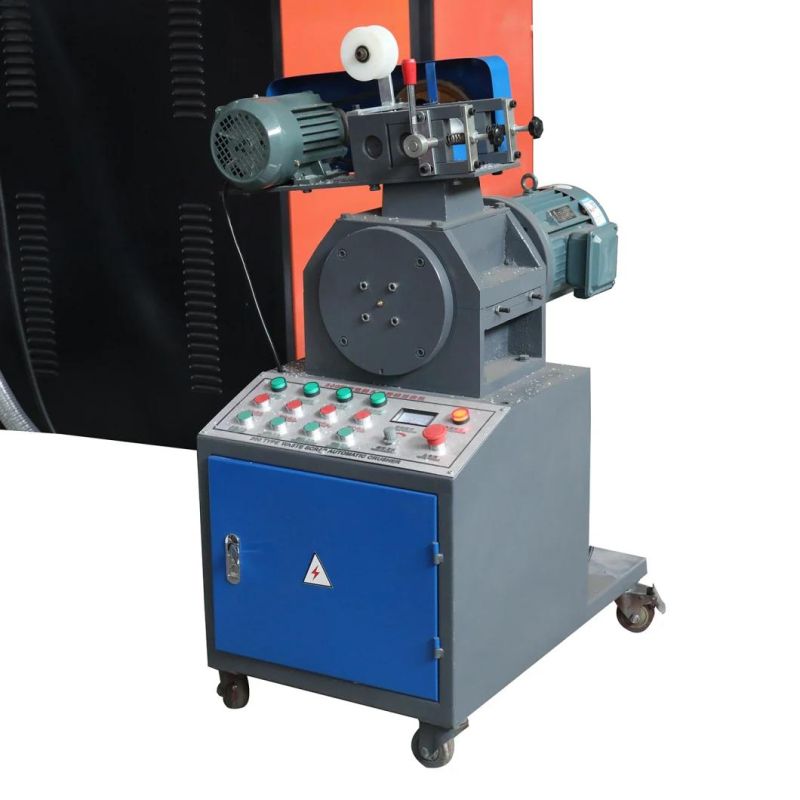

5) HYDRAULIC NET CHANGER
Main Technical Variables:
| Model | FT-500double-layer | FT-1000double-layer | FT-1500double-layer |
| Diameter of Screw Stem | φ55mm*2 | φ65mm*2 | φ75mm*2 |
| L/D Ration of Screw | 28:1 | 28:1 | 28:1 |
| Material of Screw & Barrel | 38 CrMoALA | 38 CrMoALA | 38 CrMoALA |
| Rational Speed of Screw Stem | 10-120rpm | 10-120rpm | 10-120rpm |
| Width of T-die Head | 650 mm | 1250 mm | 1800 mm |
| Heating Way | Casting-aluminum heating device | Casting-aluminum heating device | Casting-aluminum heating device |
| Width of Traction Roller | 650 mm | 1250 mm | |
| Width of Products | 200-500mm | 1000mm | 1500mm |
| Thickness | 0.015-0.05mm | 0.015-0.05mm | 0.015-0.05mm |
| Main motor power | 15kw*2 | 18.5kw*2 | 22kw*2 |
| Heating Power | 30kw | 51kw | 72kw |
| Max. output(kg/h) | 40 | 100 | 150 |
| Machine weight | 3T | 5.5T | 7T |
| Overall Dimensions (L*W*H) | 4500*2600*2550mm | 7500*4500*3200mm |
