Plastic Moulding Machine with Moog Parison for 200L HDPE Drums
Zhangjiagang Dawson Machine Co., Ltd.- Type:Extrusion Blow Molding Machine
- Raw Material:PE
- Making Method of Parison:Extrusion-Blow Molding
- Automation:Automatic
- Computerized:Computerized
- Certification:CE, ISO9001:2008
Base Info
- Model NO.:DSB120
- Max. Product Volume:300L
- Screw Diameter:120mm
- Screw L/D Ratio:28 L,D
- Screw Drive Power:75kw
- Company Attribute:Manufacturer
- Delivery Time:60 Days
- Machine Lifespan:>20 Years
- Warranty:1 Year
- Voltage:Customer Specified
- After-Sales Service:Engineers Available to Service Machinery Overseas
- Blowing Pressure:0.8MPa
- Die Heating Segments:5 Zones
- Max.Die Diameter:520mm
- Mold Stroke:600-1500mm
- Max.Size of Mold:1000X1500mm
- Transport Package:Nude Package,as Customers Request
- Specification:DSB120
- Trademark:DAWSON
- Origin:Zhangjiagang
- HS Code:8477301000
- Production Capacity:up to Product
Description
Basic Info.
Model NO. DSB120 Max. Product Volume 300L Screw Diameter 120mm Screw L/D Ratio 28 L/D Screw Drive Power 75kw Company Attribute Manufacturer Delivery Time 60 Days Machine Lifespan >20 Years Warranty 1 Year Voltage Customer Specified After-Sales Service Engineers Available to Service Machinery Overseas Blowing Pressure 0.8MPa Die Heating Segments 5 Zones Max.Die Diameter 520mm Mold Stroke 600-1500mm Max.Size of Mold 1000X1500mm Transport Package Nude Package/as Customers Request Specification DSB120 Trademark DAWSON Origin Zhangjiagang HS Code 8477301000 Production Capacity up to ProductProduct Description
DAWSON MACHINERY & MOULD GROUP***EXTRUSION BLOW MOLDING MACHINE EXPERT***
Our customers are all around the world.
Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

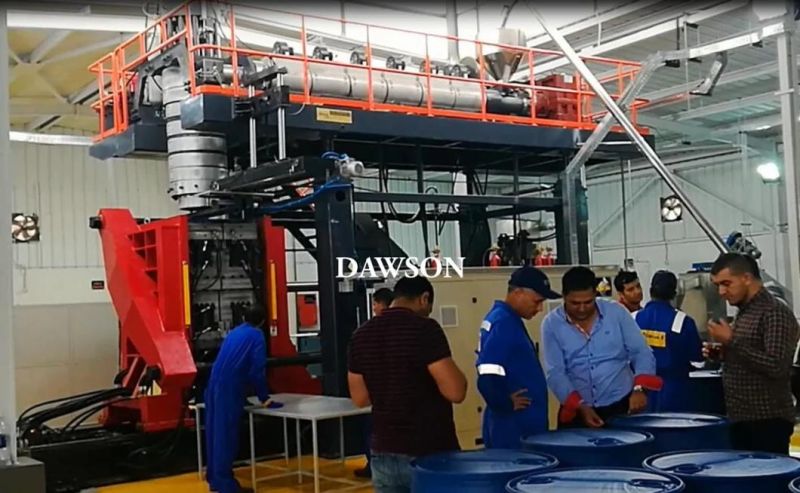

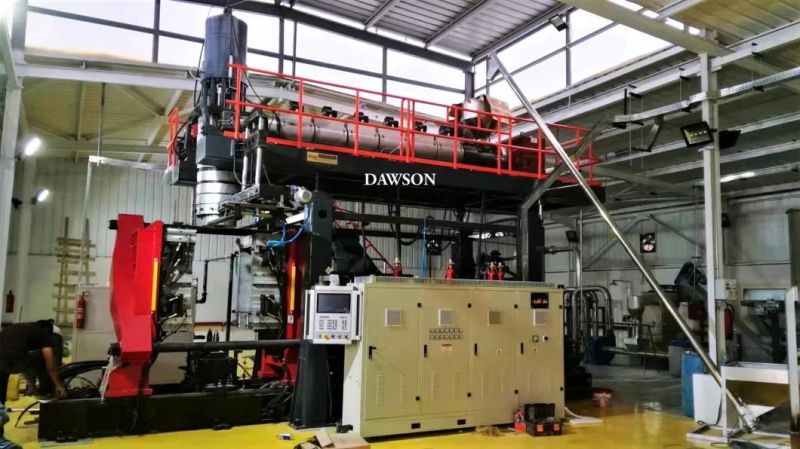

Accumulation Blow Molding Machine DSB120
DSB120 Accumulation Blow Molding Machine
was specially designed for making plastic water tanks, plastic cans, lubricant oil bottles, plastic drums, plastic toys and other plastic containers not over 250L.
The features of this machine:
(1)It is suitable for producing PE, HDPE, PP, PVC so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 250L.
(2)Single station single die head design, very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.
(5)Accumulation die head, MOOG parison controller equipped.
(6)Bottom blow technology make the product perfect.
(7)Auto lubricant system controlled by PLC.
Blow Molding Machine DSB120
Max. Product volume | 250liters |
Output capacities | as per samples |
Screw diameter | 120mm |
Screw L/D ratio | 28 L/D |
Screw drive power | 75 KW |
Screw heating capacity | 30 KW |
No.of heating zone | 5 zones |
Output of HDPE | 240 KG/H |
Oil pump drive power | 45 KW |
Clamping force | 800 KN |
Max.size of mold | 1000X1500mm |
Mold stroke | 600-1500mm |
Max.die diameter | 520mm |
Die heating power | 12 KW |
Die heating segments | 5 zones |
Blowing pressure | 0.8mpa |
Air volume | 1.6 M³/MIN |
Cooling water pressure | 0.3mpa |
Water consumption | 180 L/MIN |
