• Model NO.：LSJ-120,35+45,30
• Computerized：Computerized
• Certification：CE, ISO9001:2008
• Customized：Customized
• Condition：New
• Sheet Size：2100mm Width*8-10mm Thickness
• Application：Sunshine Panel Roofing or Construction etc
• Extruder Model：Sj120,35+45,30
• T-Die Head：Jc-Times Brand
• Max Capacity：350kg,H
• Total Installed Power：510kw
• Guaranteed Time：12 Months
• Transportation：2 Sets of 40gp Containers
• Transport Package：Wooden Pallet,Cases with Streching Films
• Specification：LMSB-120,35
• Trademark：leader machinery
• Origin：Qingdao, China
• HS Code：84772090
• Production Capacity：25 Sets,Per Year

Item
Description
Data
1
SJ120/35 Single screw extruder with stainless steel hopper
1 set
2
Screen exchanging unit for PC
1 set
3
Melting gear pump for PC
1 set
4
SJ45/30 Single screw extruder for UV layer
1 set
5
Melting gear pump for uv
1 set
6
T-type Die head (2100mm*4-6mm)
1 set
7
Vacuum calibrating board
1 set
8
cooling table
1 set
9
The first haul off machine with 12 rollers
1 set
10
edge cutting device
1 set
11
5000mm oven
1 set
12
Corona treating unit
1 set
13
up and down sides, double position film laminating device
1 set
14
The second haul off machine
1 set
15
Tranverse cutting machine (length-settled)
1 set
16
material conveyor+6000mm discharge table
1 set
17
eletrical cabinet
1 set
other accessory machine parts
18500kg mixing and drying machine1 set19AC-25 water chiller1 set2015kw air compressor1 set21sheet crusher 1 set

PART 3 SHEET APPLICATIONS:
PC hollow sheet is widely used in construction sunroof in buildings/halls/shopping center/stadium/public places of entertainment and public facility; Ring shield of bus station/garages/pergolas/corridors; noise barriers for highways and urban elevated road

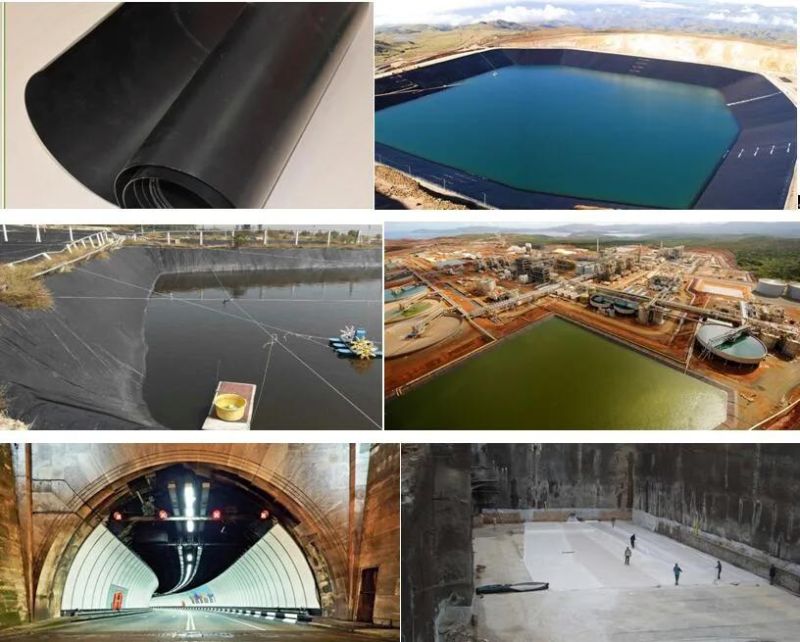

PART 4 MAIN APPLICATIONS :

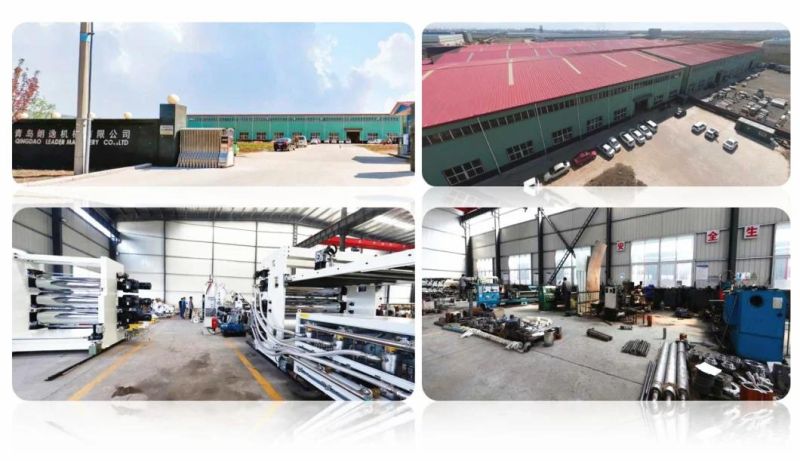

PART 5 COMPANY INFORMATION AND MAIN PRODUCTS:

PART 6 COMPANY CERTIFICATIONS:



PART 7 MACHINE PACKING AND DELIVERY
All the machine parts will be packed in wooden cases or pellets with stretching films on machine body.

PART 8 COMPANY OVERSEA SHOWS
OUR COOPERATED SUPPLIER LIST
