• Model NO.：LSJ-120,35+45,30
• Computerized：Computerized
• Certification：CE, ISO9001:2008
• Customized：Customized
• Condition：New
• Sheet Size：2100mm Width*8-10mm Thickness
• Application：Sunshine Panel Roofing or Construction etc
• Extruder Model：Sj120,35+45,30
• T-Die Head：Jc-Times Brand
• Max Capacity：350kg,H
• Total Installed Power：510kw
• Guaranteed Time：12 Months
• Transportation：2 Sets of 40gp Containers
• Transport Package：Wooden Pallet,Cases with Streching Films
• Specification：LMSB-120,35
• Trademark：leader machinery
• Origin：Qingdao, China
• HS Code：84772090
• Production Capacity：25 Sets,Per Year

ItemDescriptionData1SJ120/35 Single screw extruder with stainless steel hopper1 set2Screen exchanging unit for PC1 set3Melting gear pump for PC1 set4SJ45/30 Single screw extruder for UV layer1 set5Melting gear pump for uv1 set6T-type Die head (2100mm*4-6mm)1 set7Vacuum calibrating board1 set8cooling table1 set9The first haul off machine with 12 rollers1 set10edge cutting device

 1 set115000mm oven1 set12Corona treating unit1 set13up and down sides, double position film laminating device 1 set14The second haul off machine1 set15Tranverse cutting machine (length-settled)1 set16material conveyor+6000mm discharge table1 set17eletrical cabinet1 set other accessory machine parts

 18500kg mixing and drying machine 1 set 19AC-25 water chiller 1 set 2015kw air compressor 1 set 21sheet crusher  1 set
Part 4: Applications:
1) Sunshades for stadium and bus shelters
2) Lighting for corridors, passages and subway entries
3) Bank ATMs
4) Sound and heat insulation for construction such as: houses
5) Canopies for agriculture greenhouse, zoos
6) PC sheets mainly used for building and decorating materials, greenhouse material, telephone booth, insulation shield express ways & highways
7) Office building, hotels, villas, stadium, schools, bus stop, terminals, hospitals, subway entry and exit doors, etc.

Part 5 UV protection
solar radiation has a harmful component by UV rays which initiate degradation of many polymetric material including polycarbonate.
This depends on geographic locations, seasons etc. Polycarbonate sheets feature a specifically co-extruded UV absorption and
protection layer, which provides long-lasting high stability against demanaging UV radiation, protects againts outdoor weathering and
retains its original color and light transmission.


Part 6 Material:
PC pellets (germany Baier brand )
UV material (germany Baier brand)

PART 4 MAIN APPLICATIONS :


PART 5 COMPANY INFORMATION AND MAIN PRODUCTS:

PART 6 COMPANY CERTIFICATIONS:



PART 7 MACHINE PACKING AND DELIVERY
All the machine parts will be packed in wooden cases or pellets with stretching films on machine body.

PART 8 COMPANY OVERSEA SHOWS
OUR COOPERATED SUPPLIER LIST




PART 12 OTHER KINDS OF PLASTIC SHEETS/PLATES EXTRUSION LINE RECOMMENDATION :

1. PET sheet extrusion machine:
Processing material: PET virgin pellets(APET or PETG) plus flakes; Or 100% flakes
Thicknes range: 0.2-1.5mm
Net sheet width: 650mm-1500mm(or as per cusotmer's requirement)
Layer structure: Signle layer or multi-layer
Capacity: 150-650kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.

2. PP/PS sheet extrusion machine:
Processing material: PP/PS virgin pellets plus recycle material;
Thickness range: 0.15-2mm
Net sheet width: 650mm-720mm-1000mm-1300mm-1500mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1000kg/h
Application: Thermoforming(cup, bowel, etc. ), stationery, printing sheet, packaging, etc.

3. ABS/HIPS sheet extrusion machine:
Processong material: ABS/HIPS virgin pellets plus recycle material
Thickness range: 1-6mm
Net Sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 300-800kg/h
Application: Vacuum forming, thermoforming, refrigerator inner layer, suitcase, etc.

4. ABS/PMMA sheet extrusion machine:
Processing material: ABS/PMMA virgin pellets plus recycle material
Thickness range: 1-8mm
Net sheet width: 1200mm-1600mm-2100mm(or as per customer's requirement)
Layer structure: Single layer or multi-layer
Capacity:300-800kg/h
Application: Vacuum forming, bathtube, etc.

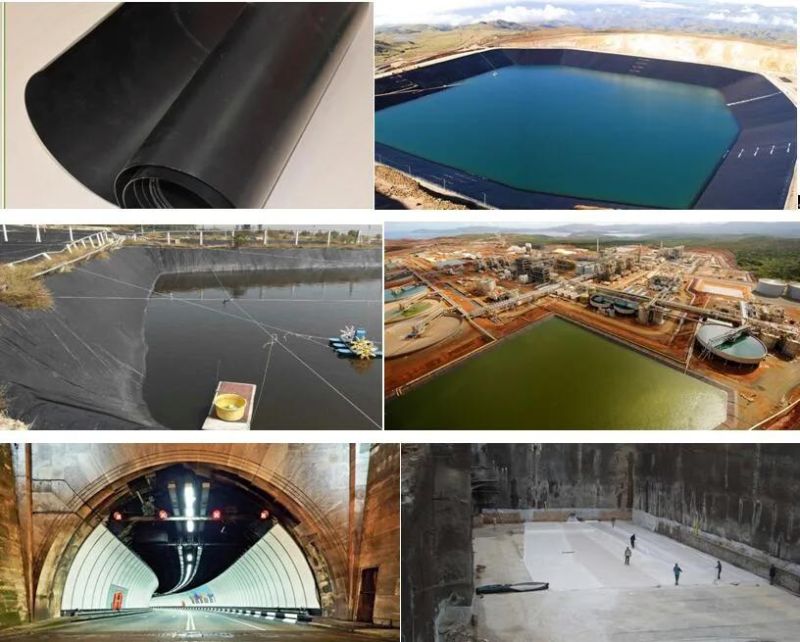

5. PE sheet extrusion machine:
Processing material: HDPE/LDPE/LLDPE virgin pellets plus recycle material
Thickness range: 1-2.5mm, 3-35mm
Net sheet width: 1200mm-1600mm-1800mm-2500mm-3000mm-40000mm-6000mm-8000mm
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-1200kg/h
Application: Packaging, construction, water-proof, water-drainage, Geomembrane film, etc.

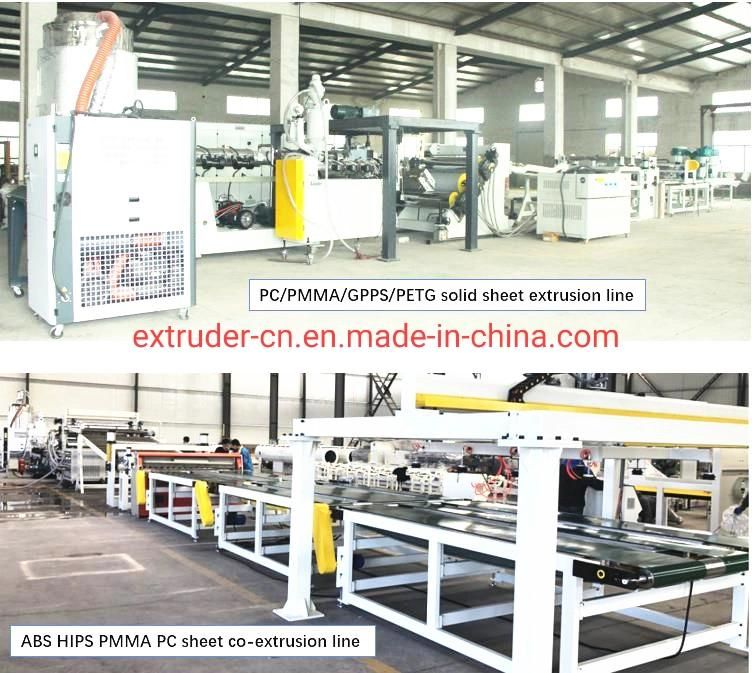

6. PC/GPPS/PMMA sheet extrusion machine:
Processing material: PC/GPPS/PMMA virgin pellets plus recycle material
Thickness range: 1-12mm
Net sheet witdh: 600mm-1220mm-2100mm(or as per customer's requirement)
Layer Structure: Single layer or multi-layer
Capacity: 200-600kg/h
Application: Ads., decoration, roofing, etc.

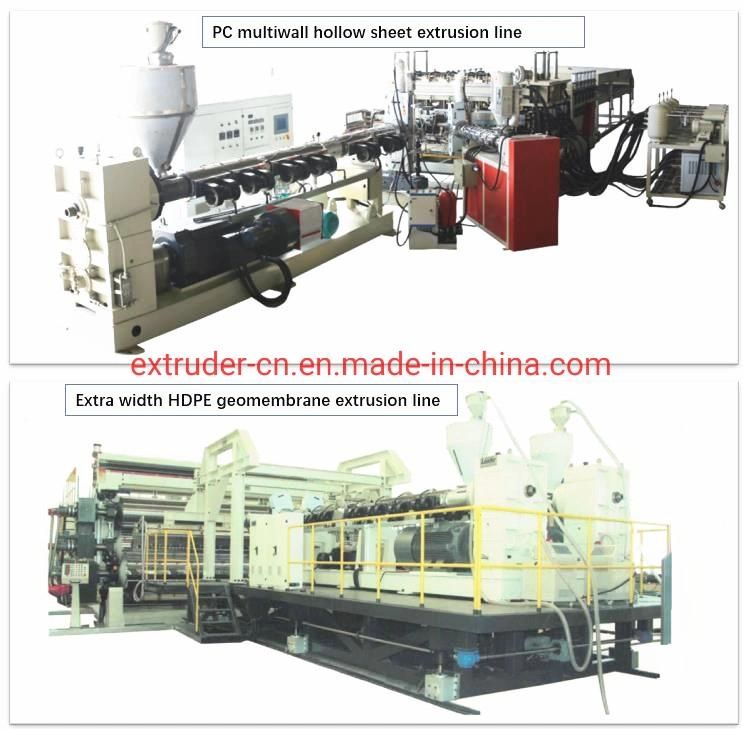

7. PC/PP/PE hollow profile sheet/ sunshine roofing panel machine:
Processing material: PC/PP/PE virgin material plus recycle material
Thickness range: 2mm-4mm-6mm-8mm-10mm-12mm
Net sheet width: 1220mm-2100mm
Layer structure: Single layer or multi-layer
Capacity:200-600kg/h
Application: Ads. Decoration, roofing, packaging, printing, etc.

8. PVC sheet/edge banding sheet/marble sheet machine:
Processing material: PVC power plus other additive
Thickness range: 0.15-1mm; 1-3mm; 3-12mm
Net sheet width: 650mm-2000mm-3000mm( or as per customer's requirements)
Layer structure: Single layer or multi-layer
Capacity: 200kg/h-500kg/h
Application: Thermoforming, stationery, printing, payment card, SIM card, construction, etc.

9. PVC free foam/celuka foam board extrusion line
board width: 1220mm, thickness: 1-10mm, 3-25mm
board application: decoration board, advertising boards, exhibition boards
extruder model: SJ-80/156 conical twin screw extruder
max capacity: 350kg/h
certifications: CE, ISO9001-2008

10. EVA car interior decoration sheet extrusion line
Processing material: EVA and other additives
Thickness range: 1-8mm
Width range: 1000-1800mm
Layer  strcuture: single layer
Capacity: 700-800kg/h
Application: automotive sealing strips, sound insulation cushion, sound absorption sheets,
automobile tail box, fenders, car interior and exterior decoration parts etc.

11. PVC+PMMA Glazed roofing tiles/corrugated sheet extrusion machine
Processing material: PVC, PMMA and other additives
Thickness range: 1-8mm
Width range: 720mm, 880mm, 1040mm
Layer structure: A/B, A/B/A, A/B/C
Capacity: 400kg/h
Application: garden-style factory, tourist scenic spots, pavillions, hotels, family building etc.
