• Model NO.：CNMC-E2
• Automation：Non-Automatic
• Computerized：Non-Computerized
• Certification：CE, ISO9001:2008
• Power：18kw,20kw
• Max. Raw Output：2-12kg,Min
• Material Ratio：1:1
• Heating Temper：0-90
• Air Source：0.35-0.8 MPa ≥ 0.9 M3,Min
• Heating Hose：15 Meters
• Air Delivery Pipes：5 Meter
• Transport Package：Wooden Case or as Customer′s Requeaet
• Specification：770mm*560mm*1350mm
• Trademark：CNMC
• Origin：Shandong, China
• HS Code：8477800000
• Production Capacity：300 Sets,Month

Model

CNMC-E2

Power source

single phase 220V 50Hz

Heating powe

7.5KW

Driven mode

pneumatic

Air source

 0.5~0.8 MPa ≥0.9m³/min

Raw output

2~12 kg/min

Maximum output pressure

11MPA

AB material output ratio

1:1

Spray gun

1 Set

Feeding pump

2 sets

Heating hose

15meters

Gun connection pipe

2pieces

Feed delivery pipe

2pieces

pneumatic  pipe

5meters

Spare parts

1set

Packing size

860mm X 860mm X 1560mm

Machine weight

211KG

Features:

1. Stable cylinder supercharged unit, easily providing adequate working pressure;

2. Small volume, light weight, low failure rate, simple operation, easy mobility;

3. Adopting the most advanced ventilation method, guarantee equipment working stability to the maximum;

4. Minimizing spraying congestion with 4-layers-feedstock device;

5. Multi-leakage protection system to protect the safety of the operator;

6. Equipped with emergency switch system, help operator deal with emergencies rapidly;

7. Reliable & powerful 220V heating system enables rapid warming of raw materials to the best state, making sure it works great in cold condition;

8. Humanized design with equipment operation panel, super easy to get the hang of it;

9. Feed pump adopts big change ratio method, it can easily feed raw materials high viscosity even in winter.

10. The latest spraying gun has great features like small volume, light weight, low failure rate, etc;

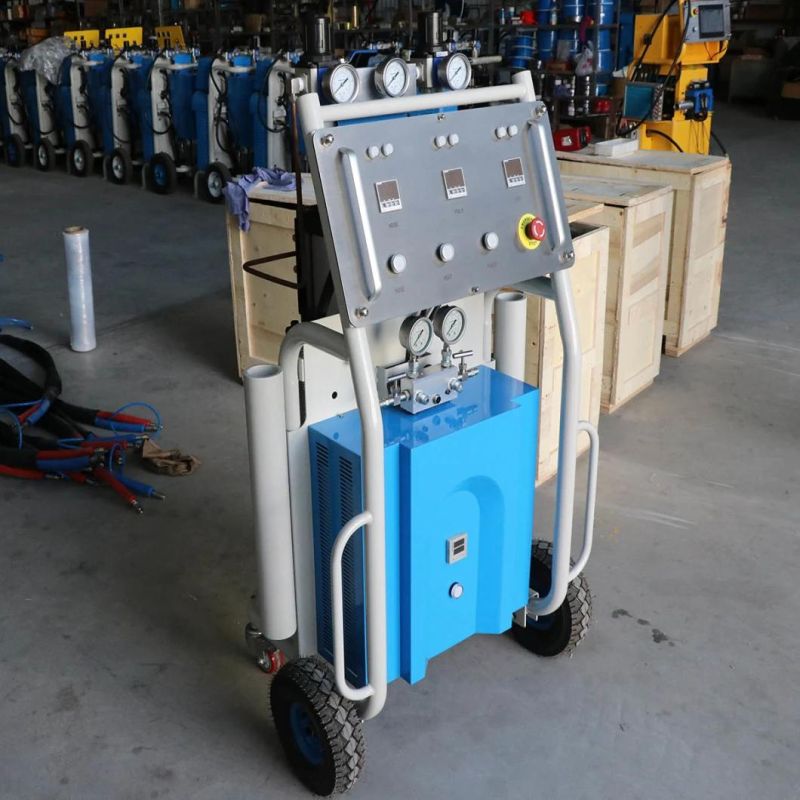

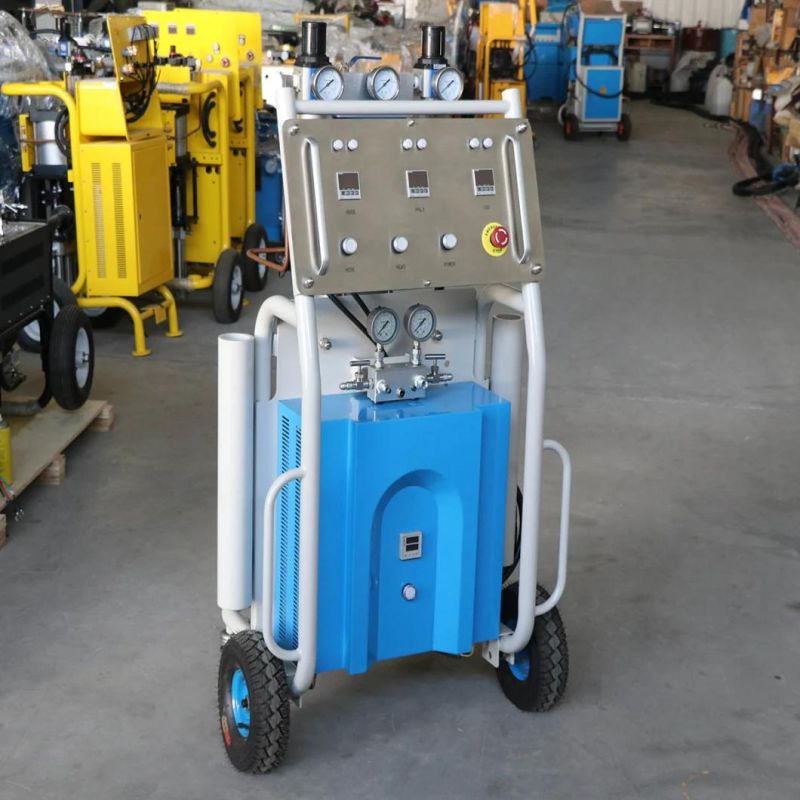

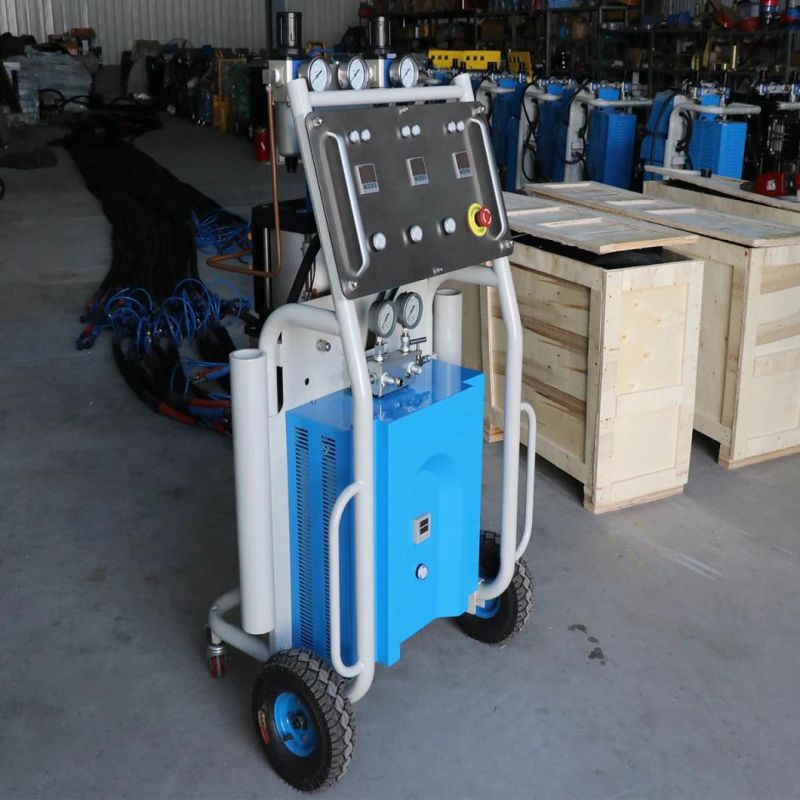

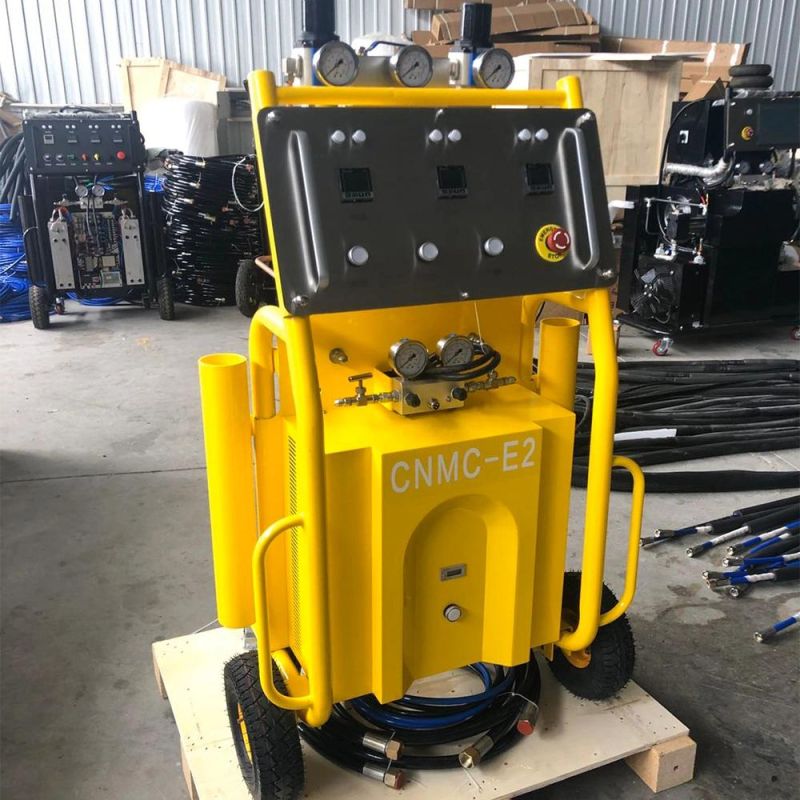

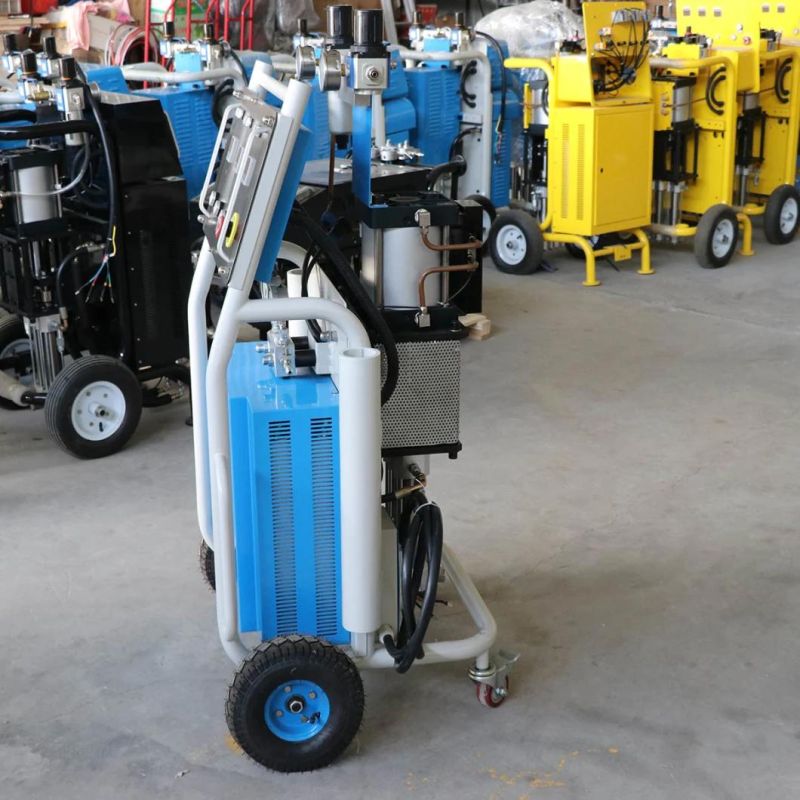

Images of polyurethane foam injection machine
